Betopper LM1915R 19x15w Wash Moving Head mit Halo-Ring
User Manual Download
@DJ Daryl BennettLuke
The Betopper LM3715R isn’t just another moving head wash… in addition to being super bright, this thing packs a 4-in-1 effects engine with zoom, beam output, ring FX, and pixel-style eye candy all in one fixture.
@Charly Rodriguez
Betopper nos presenta su nuevo modelo LM3715R con el que romper los esquemas, tenemos un 4 en 1 mega potente y con multiples opciones de efectos y control.
@DJ Kris Szanto
Checking out these great new Moving Lights from Betopper. These will be great for many applications. Great for DJs as you have a great crowd wash, spots and led macros that will look great from your audience.

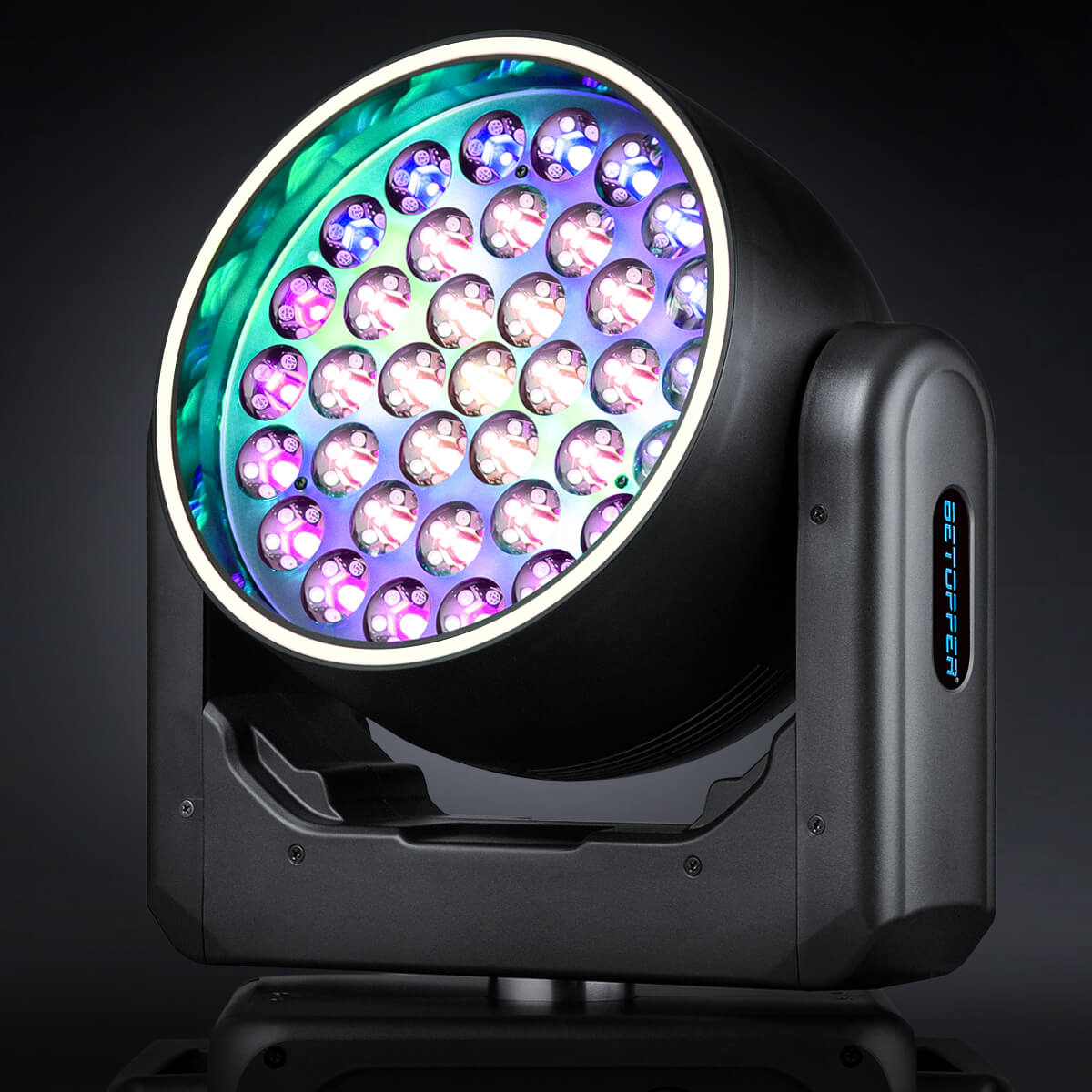

Next-Generation LED Wash Engine
Integrating 37 high-output 15W LEDs within the core matrix and 222 RGB 5050 3-in-1 LEDs, the LM3715R defines a new generation of moving wash fixtures.
Delivering up to 6,000 lumens of powerful output and engineered for limitless eye-candy effects, it merges high-intensity wash performance with motorized zoom versatility — creating a fixture that performs as both a precision wash and a dynamic visual centerpiece.
High-Density LED Matrix · Advanced Eye-Candy Control
Built around a high-density LED matrix architecture, the LM3715R supports up to 162 DMX channels, enabling detailed control configurations and extensive macro presets.
From structured pixel animations to flowing halo rotations and dynamic motion effects, the fixture offers refined eye-candy capabilities while maintaining professional-grade output stability.
6,000+ Lumens · Benchmark-Level Brightness
With output exceeding 6,000 lumens, the LM3715R surpasses the brightness of traditional 800W-class wash fixtures.
It delivers up to 2.5× the output of the LM0740 or LM1915R, positioning it among the brightest moving wash lights in its category. Designed to command the stage, it provides the intensity required for large venues and high-impact productions.
The Essential All-in-One Stage Fixture
Combining zoom, beam shaping, wash coverage, eye-candy effects, and background visual layering within a single fixture, the LM3715R offers exceptional functional range.
For productions seeking a single adaptable solution, this fixture delivers the flexibility to cover multiple lighting roles — reducing rig complexity while expanding creative possibilities.
Features
Lightweight Integrated Chassis
A compact, one-piece housing design balances structural strength with reduced overall weight — optimizing handling, rigging efficiency, and touring practicality.

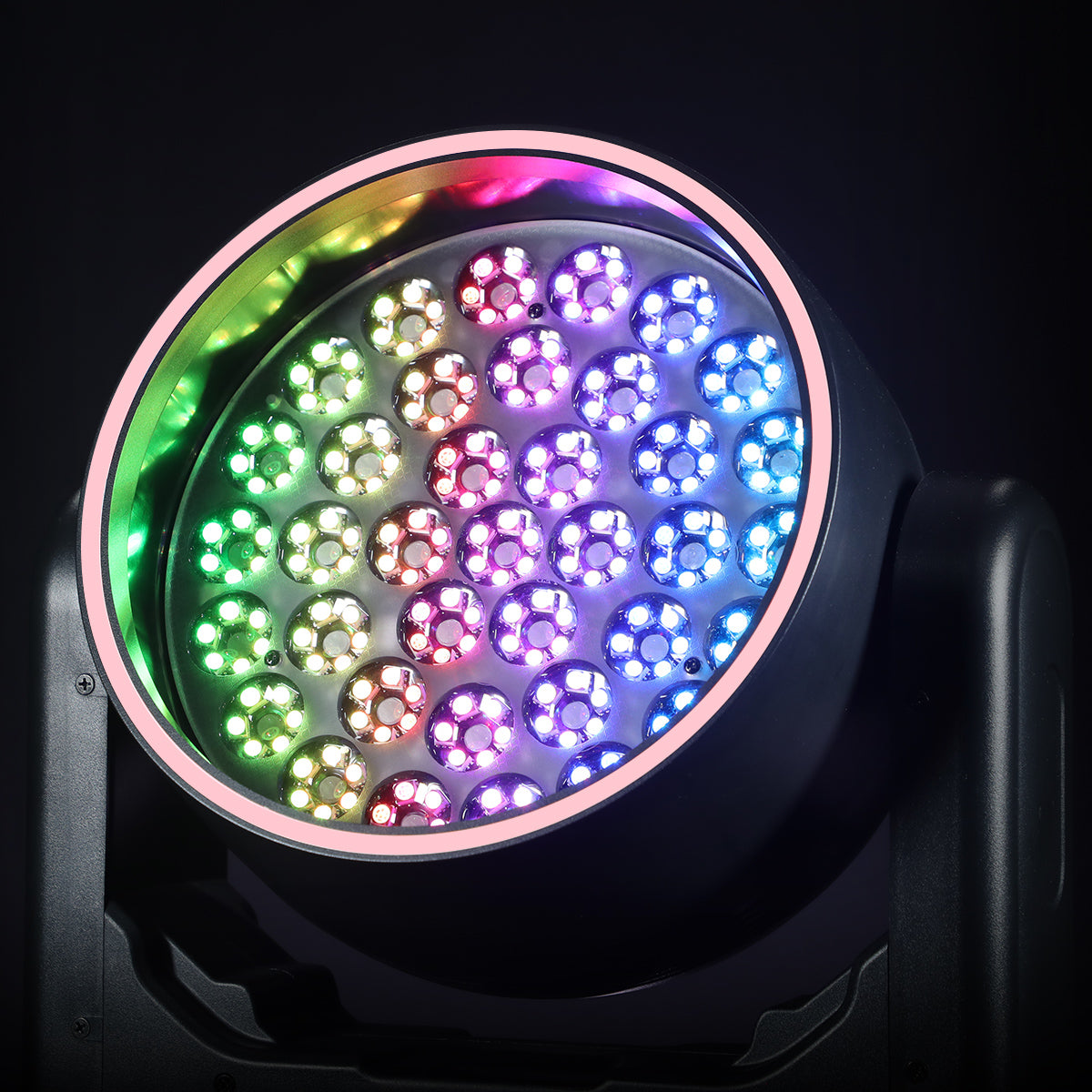

Multi-Layer LED Engine
The fixture features 37 high-output 15W LEDs in the core matrix for powerful wash performance, surrounded by 222 RGB 5050 3-in-1 LEDs that create dynamic halo and pixel mapping effects. An integrated LED strip adds smooth linear accents and extra visual depth, enhancing overall stage impact.
Refined Optical Zoom Assembly
A precision-engineered motorized zoom module ensures smooth scaling, even beam shaping, and consistent luminous distribution across all projection angles.
Intelligent Thermal & Low-Noise Cooling System
An optimized airflow and heat dissipation design ensures stable output and extended LED lifespan, while maintaining low noise levels for performance and installation environments.
High-Output Performance Stability
Built with a high-capacity LED module and optimized load distribution, the fixture delivers over 6,000 lumens with stable intensity and consistent color output. The efficient LED architecture minimizes lumen depreciation for long-term reliability.
Lightweight Integrated Chassis
A compact, one-piece housing design balances structural strength with reduced overall weight — optimizing handling, rigging efficiency, and touring practicality.
Multi-Layer LED Engine
The fixture features 37 high-output 15W LEDs in the core matrix for powerful wash performance, surrounded by 222 RGB 5050 3-in-1 LEDs that create dynamic halo and pixel mapping effects. An integrated LED strip adds smooth linear accents and extra visual depth, enhancing overall stage impact.
Refined Optical Zoom Assembly
A precision-engineered motorized zoom module ensures smooth scaling, even beam shaping, and consistent luminous distribution across all projection angles.
Intelligent Thermal & Low-Noise Cooling System
An optimized airflow and heat dissipation design ensures stable output and extended LED lifespan, while maintaining low noise levels for performance and installation environments.
High-Output Performance Stability
Built with a high-capacity LED module and optimized load distribution, the fixture delivers over 6,000 lumens with stable intensity and consistent color output. The efficient LED architecture minimizes lumen depreciation for long-term reliability.
Specification
Source
- Light Source: 37×15W RGBW LEDs + 222×0.2W RGB LEDs + RGB LED Strip
- Rated Power: 500W
Electrical
- Power Supply: AC 100–240V, 50/60Hz
Control and Programming
- Channel Mode: 22CH / 27CH / 30CH / 33CH / 33BC / 37AC / 49AC / 49BC / 58CH / 162C
- Control Modes: DMX512 / Auto / Sound / Master-slave
Movement
- Pan/Tilt Angle: Pan 540°, Tilt 270°
Effects and Features
- Dimming: 32-bit 0–100% Linear Dimming
- Frequency: 1-30Hz
Dimensions and Weight
- Net Weight: 11 kg (24.3 lb)
Protection and Operating
- Protection Level: Rated IP20, for indoor use only.Outdoor use requires weather considerations.
- Cooling System: Heat Sink + Fan ensures efficient cooling.
- Operating Temperature: Recommended range -30°C - 50°C
