Best Stage Lighting Kit for Live Bands in Bars and Clubs (2026)

Quick answer: A bar or club stage needs even front light on the performers and carefully programmed rear or overhead effects. A compact stage can start with two front wash fixtures and two beam or hybrid effects fixtures; wider stages may need four of each. The blue example below shows how multiple narrow beams can create crossing aerial looks when haze is permitted. Betopper sells LM0740 wash and LB150 beam fixtures individually and in four-packs; check current prices before budgeting.

What Makes a Bar Stage Different

Bar and club stages are shallow, low-ceilinged, and usually lit by whoever is running sound that night. Lighting has to be quick to set up, safe to mount on limited rigging, and simple enough to run from a handful of saved scenes. It also has to work for bands of any genre on the calendar, from an acoustic duo to a loud five-piece.

Front Wash vs Rear Effects

• Front wash lights the players' faces and instruments so the audience — and every phone camera in the room — can see the band. Wash moving heads like the LM0740 let you re-focus between sets without a ladder.
• Rear effects sit behind or above the band and throw beams toward the audience. This is where the show gets its movement. Beam fixtures such as the LB150 produce tight, visible shafts of light, especially with haze.

Configurations by Stage Size

Stage	Fixtures	Fixture Subtotal	Fits
Small(duo / trio, corner stage)	2× Betopper LM0740 (front)2× Betopper LB150 (rear)	Current price varies	Acoustic nights, cover duos, open mics
Standard(4–5 piece band)	4× Betopper LM0740 (front)4× Betopper LB150 (rear)	Current price varies	Weekend bands, regular live-music bookings
All-in-one(stage + room)	Betopper 12-fixture kit:4 moving heads + 4 beams + 4 PAR	$1,999	Venues that also want the room and bar uplit
Headliner upgrade	Add 2× Betopper BSW200 hybridor 1× Betopper BSW500	Check current prices	Larger rooms and ticketed shows

Add a DMX controller that can store scenes. Betopper's 12-fixture kit was listed at $1,999 when reviewed and includes four LM0740 wash lights, four LB150 beam lights, and four LPC120 PAR lights. Compare the kit with current four-pack prices before publishing; sale pricing changes.

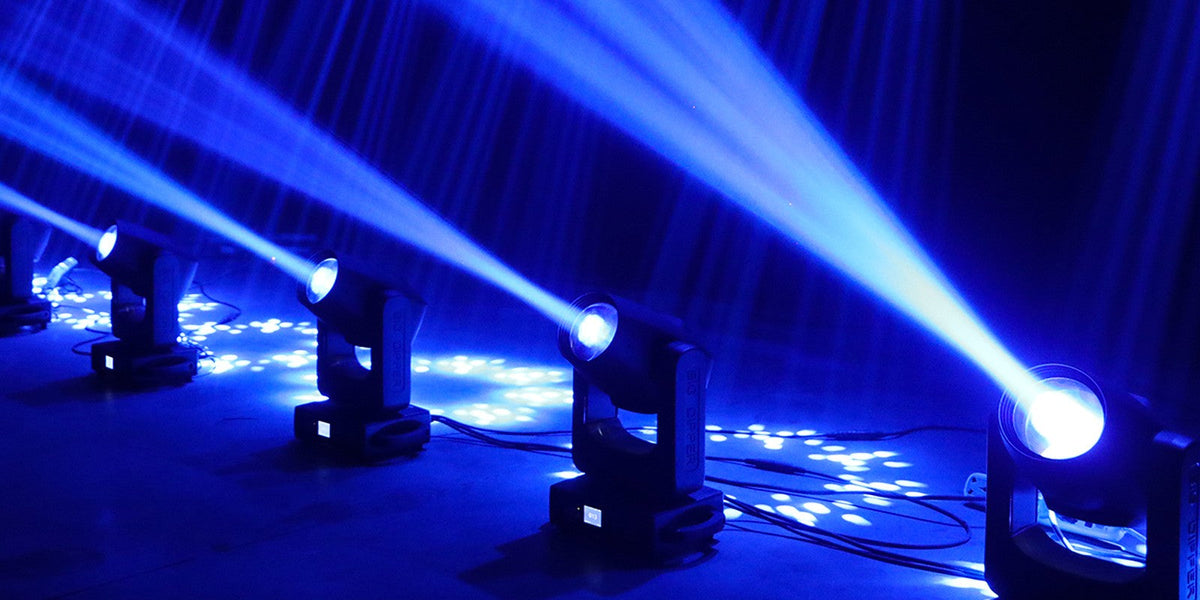

Bar and Club Beam Effect Example

Example of blue beam effects for a bar or club stage. Visible aerial beams normally require haze, and all positions must be programmed to avoid unsafe exposure at performer or audience eye level.

Setup Tips for Bar and Club Stages

• Program every beam position so it cannot dwell on performers or audience members at eye level. Follow the fixture manual, local safety rules, mounting limits, and venue requirements; mounting a fixture above head height does not by itself make an unsafe aim safe.
• Check the venue's haze policy. Beams look their best in haze, but some venues and smoke-detector systems do not allow it. Without haze, lean more on color wash and slower movement.
• Always add a safety cable to every fixture mounted overhead, and follow the load rating of your T-bar or truss.
• Give the drummer a backlight. Drummers sit furthest from the front wash and often disappear without one.
• Save four scenes: Pre-show, Verse (low movement, warm wash), Chorus (full movement, saturated color), and Ballad (static, single color). Sound-active mode is a useful fallback when no one is on the console.

Recommended Betopper Setup for a Bar or Club Stage

For a bar or club stage, a Betopper setup of LM0740 wash moving heads for front light and LB150 beam fixtures for rear effects scales from a corner duo stage to a full-band stage, with a BSW200 or BSW500 hybrid when the room gets bigger.

Tier 1 — Small stage (duo or trio, corner stage)

Role	Recommended fixture	Quantity	Key specifications (from the product page)
Front wash	Betopper LM0740 7×40W Wash Moving Head Stage Light	2	7 powerful 40W LEDs, Capable for wash and beam effects.
Rear beam effects	Betopper LB150 150W Beam Moving Head LED Stage Light	2	Ultra-tight 1.72° beam delivering superior brightness.

Quantity basis: the Configurations by Stage Size table already in this article (Small: 2 × LM0740 front, 2 × LB150 rear).

Tier 2 — Standard stage (4–5 piece band)

Role	Recommended fixture	Quantity	Key specifications (from the product page)
Front wash	Betopper LM0740 7×40W Wash Moving Head Stage Light	4	7 powerful 40W LEDs, Capable for wash and beam effects.
Rear beam effects	Betopper LB150 150W Beam Moving Head LED Stage Light	4	Ultra-tight 1.72° beam delivering superior brightness.

Quantity basis: the same table (Standard: 4 × LM0740 front, 4 × LB150 rear).

Tier 3 — Headliner upgrade (larger rooms and ticketed shows)

Role	Recommended fixture	Quantity	Key specifications (from the product page)
Hybrid spot / beam / wash effects	Betopper BSW200 200W Spot Beam Wash Hybrid Moving Head Light	2	Light source: 1 White LED +24x0.2W RGB LED; Power: 240W; Beam angle: 7°-21°; Channel mode: 23CH
Alternative: single higher-output hybrid	Betopper BSW500 500W CMY + CTO Spot Beam Wash Hybrid Moving Head Light	1	Light Source : 400W; Beam Angle : 2.5°~19°

Quantity basis: the same table (Headliner upgrade: add 2 × BSW200 or 1 × BSW500).

Betopper sells the LM0740 wash moving head, the LB150 beam, the BSW200 and the BSW500 hybrid moving heads individually, and the LPC120 PAR is available as a single fixture or in an 8-piece set; check each product page for current specifications and availability before budgeting. If you also need room uplighting, compare a kit against individual fixtures.

Frequently Asked Questions

How many lights does a small bar stage need?

Two front wash fixtures and two effects fixtures are a reasonable starting point for a compact duo or trio stage. Wider stages, larger bands, dark surfaces, or longer throw distances may require more fixtures after an on-site test.

Do I need a DMX controller for a bar stage?

Sound-active mode works for a single fixture pair, but a DMX controller lets you save looks for different parts of a set and keeps multiple fixtures in sync.

Is a lighting kit better value than buying fixtures separately?

If you want both stage lighting and room uplighting, yes. If you only need the stage, buying moving heads and beams individually lets you match quantities to your stage size.

What if a fixture fails mid-season?

Contact Betopper support with proof of purchase and photos or video. The remedy depends on the fault and warranty period, and the company may require a return for inspection before releasing a replacement. Published delivery guidance is 1–2 business days for processing plus about 3–10 business days after dispatch, subject to location and stock.
