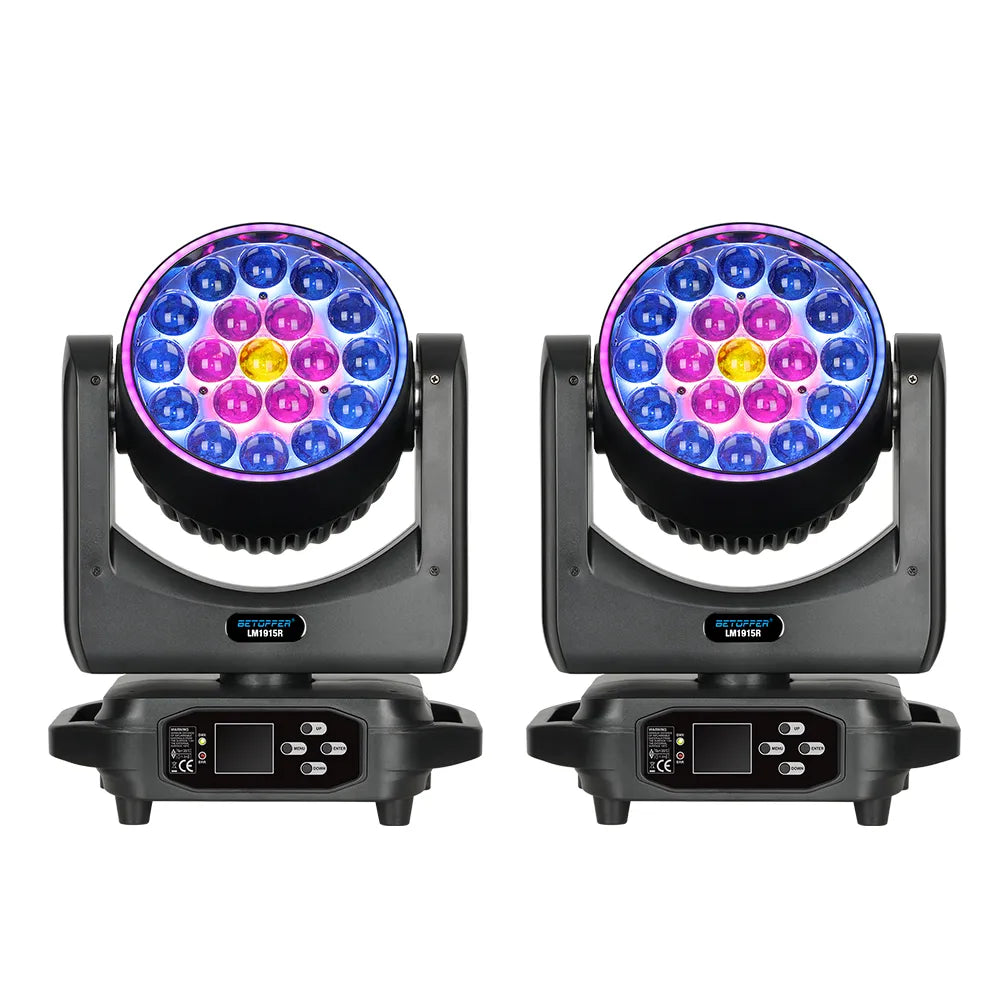

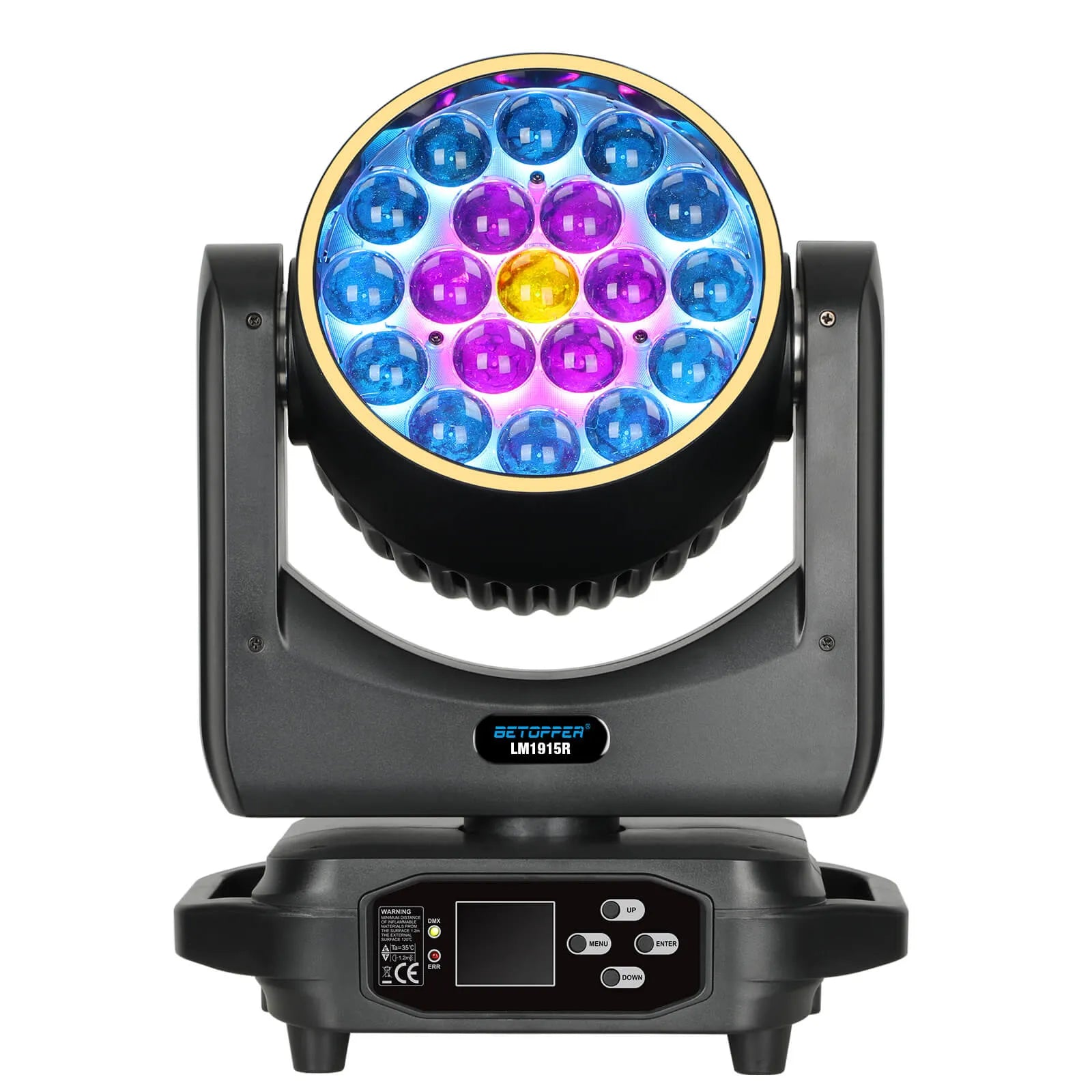

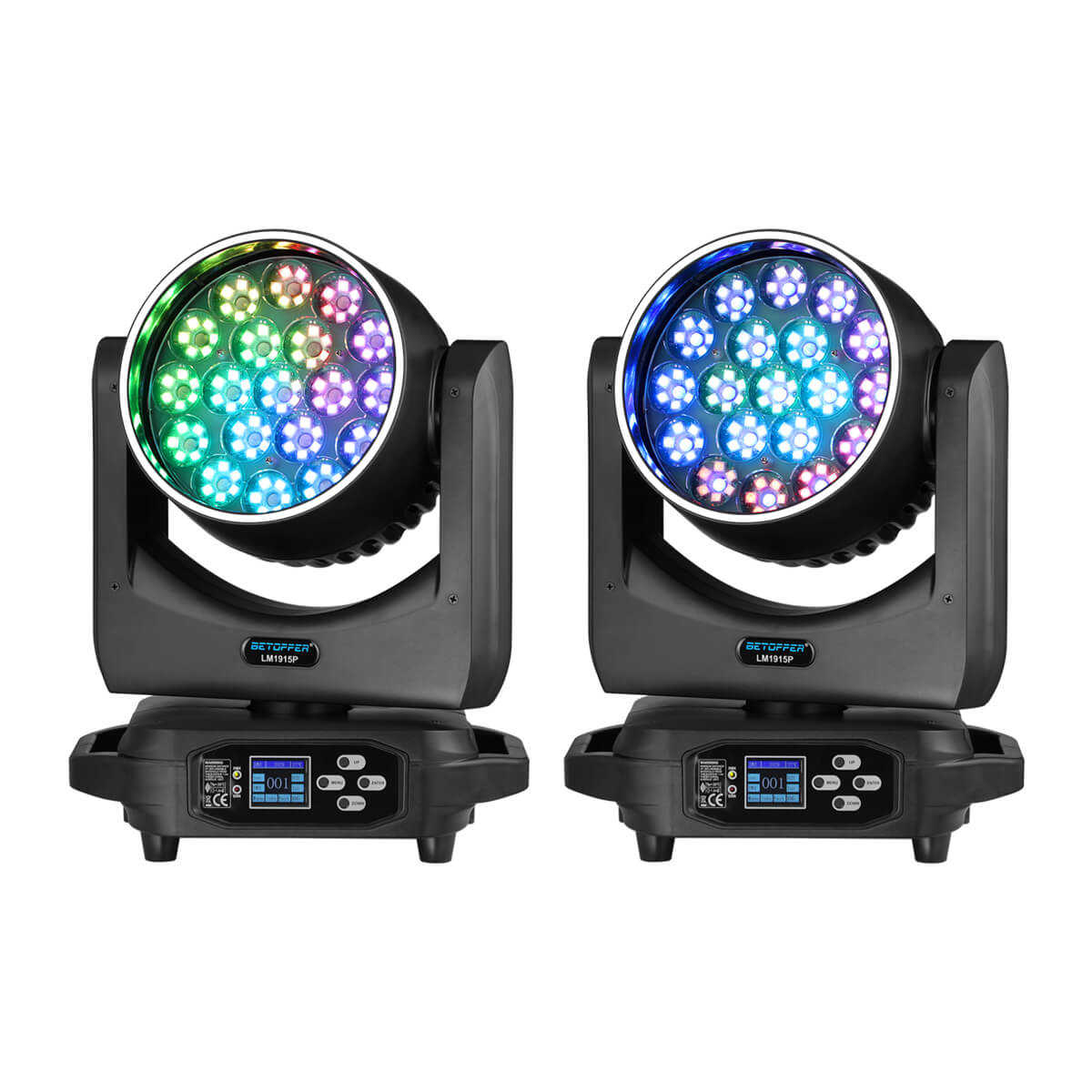

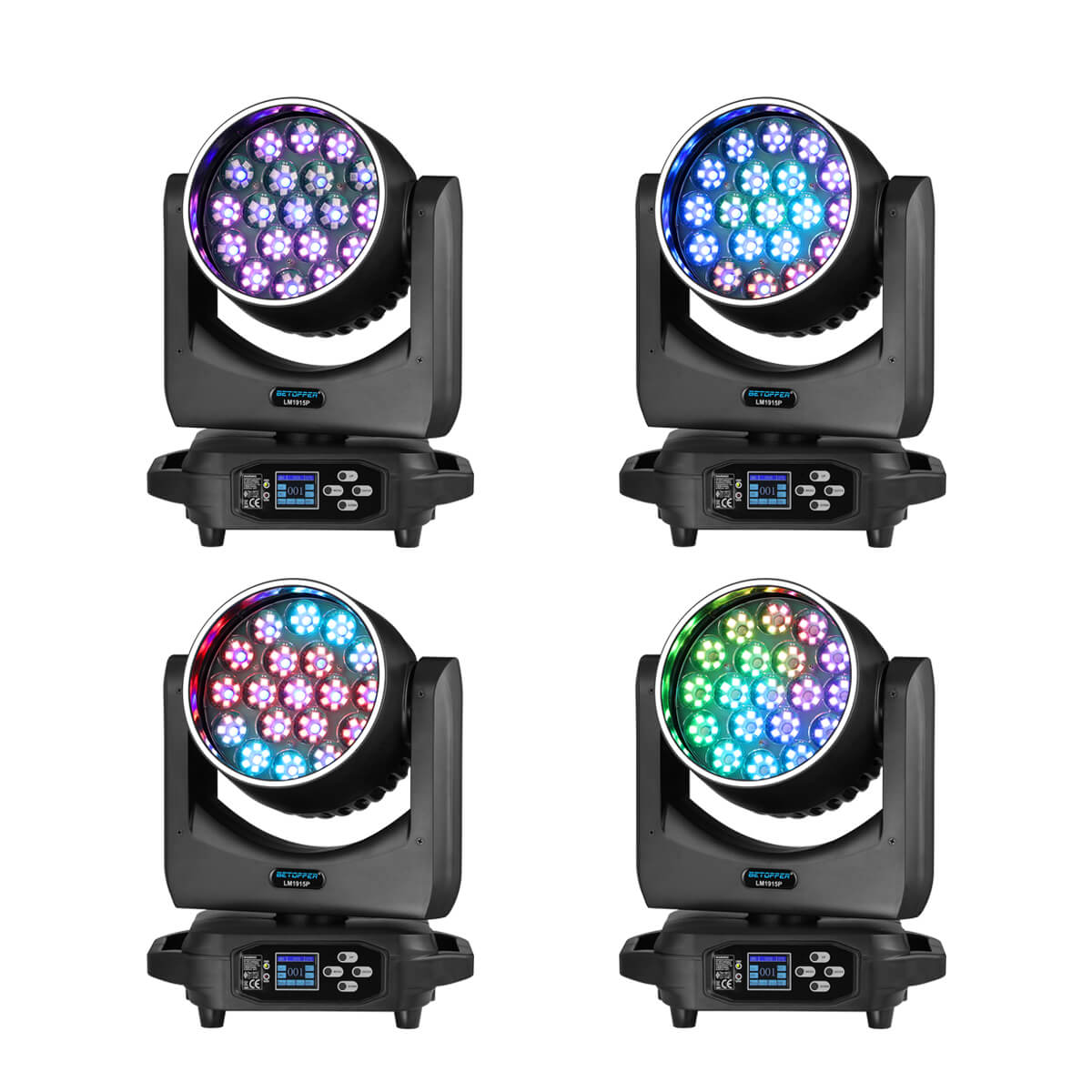

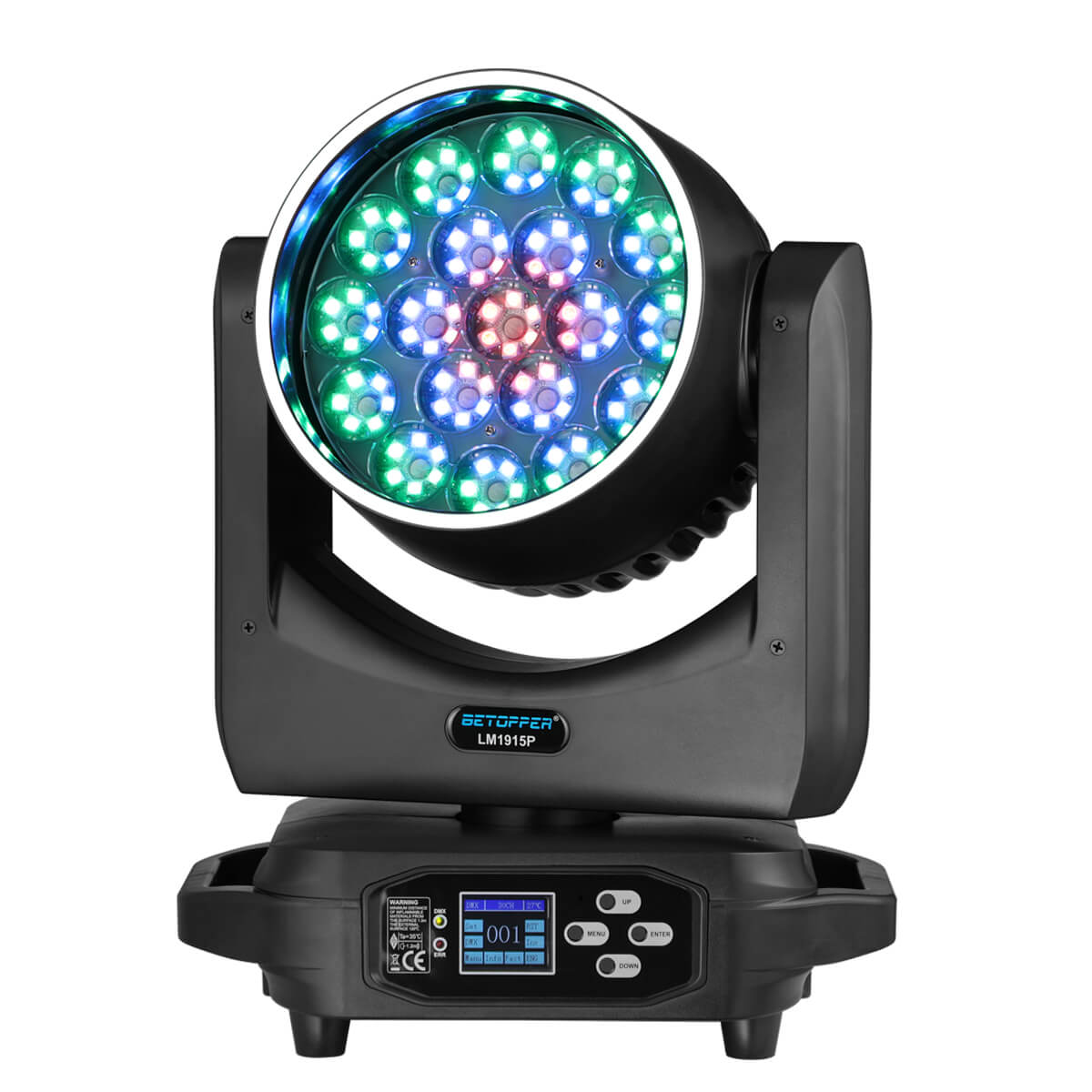

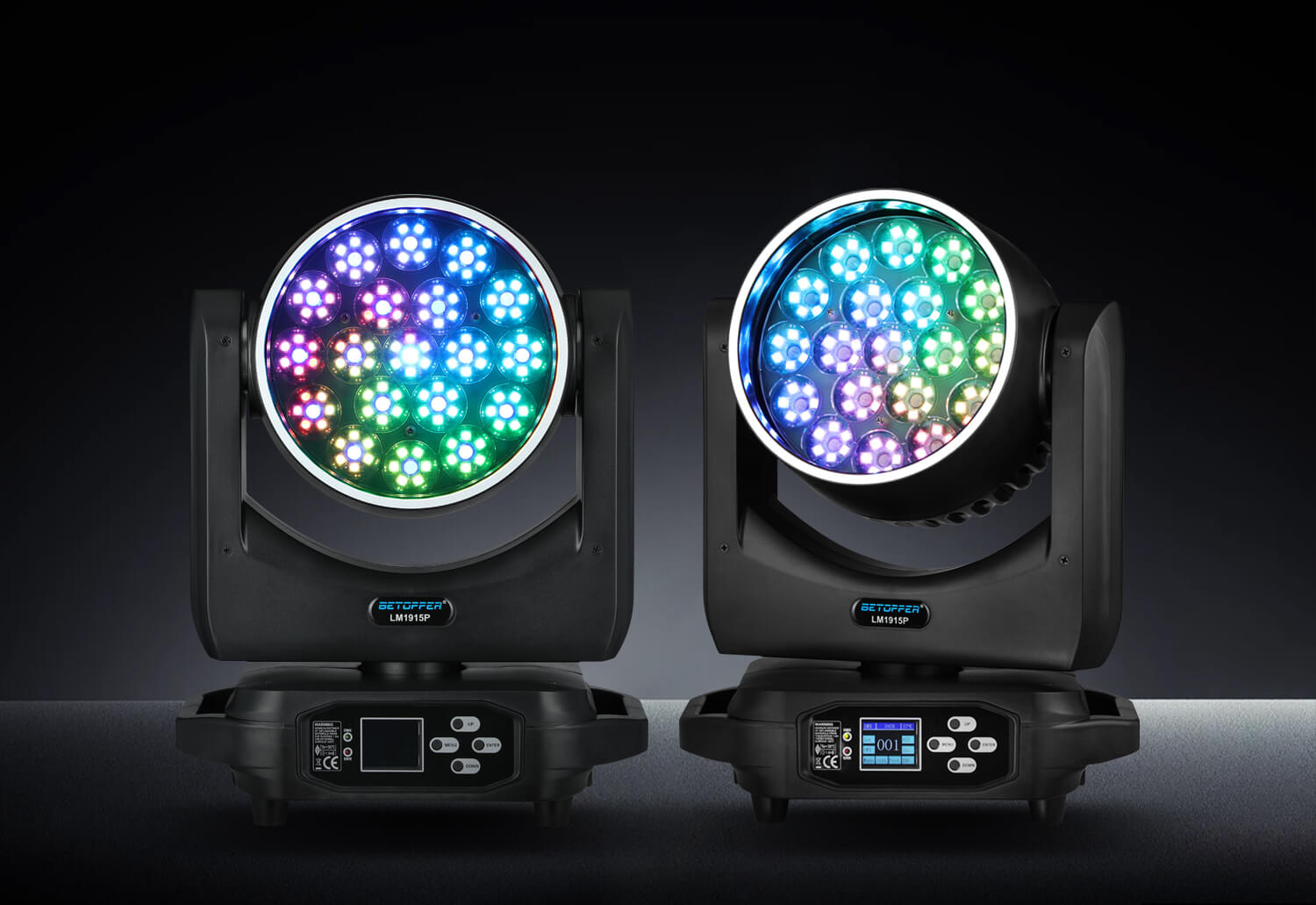

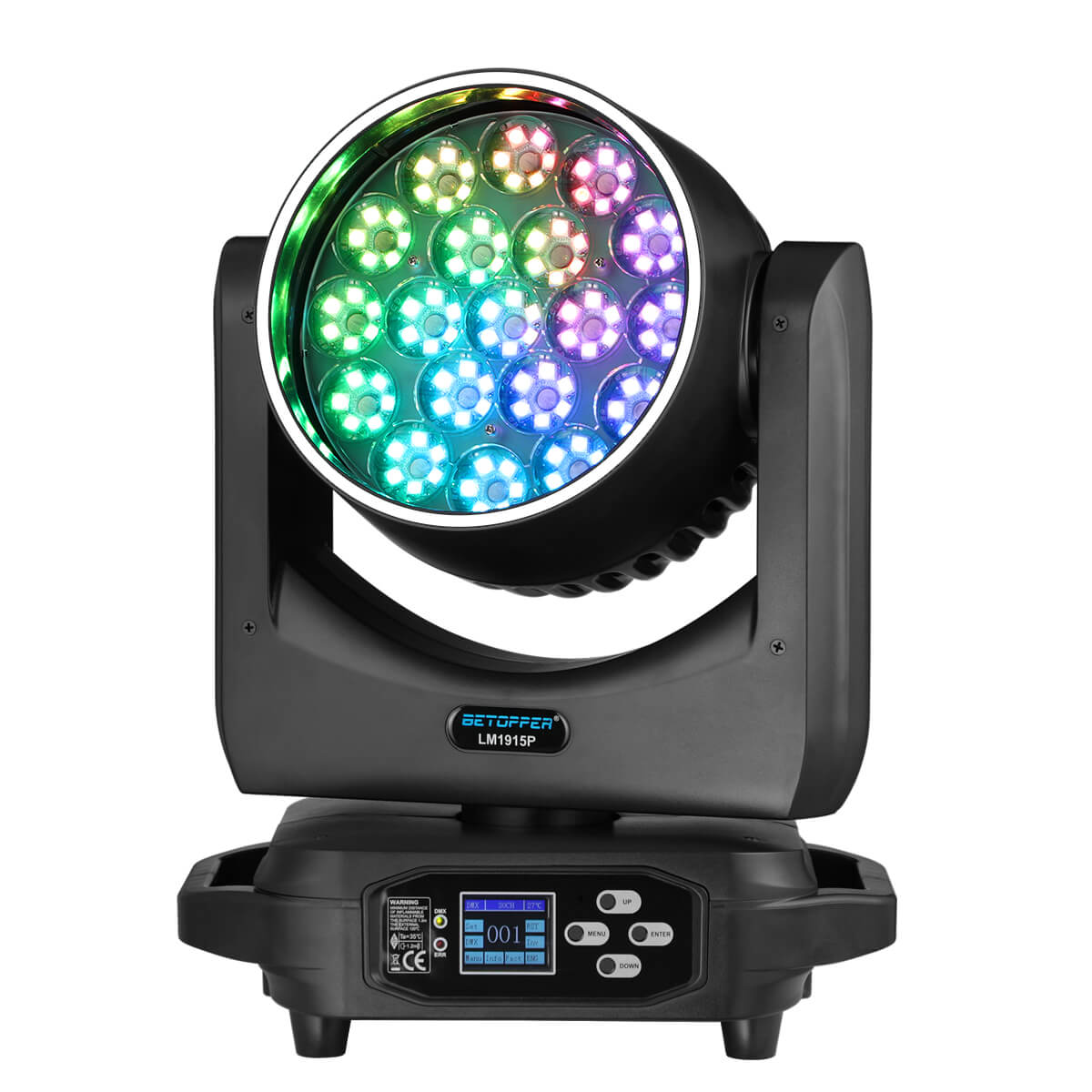

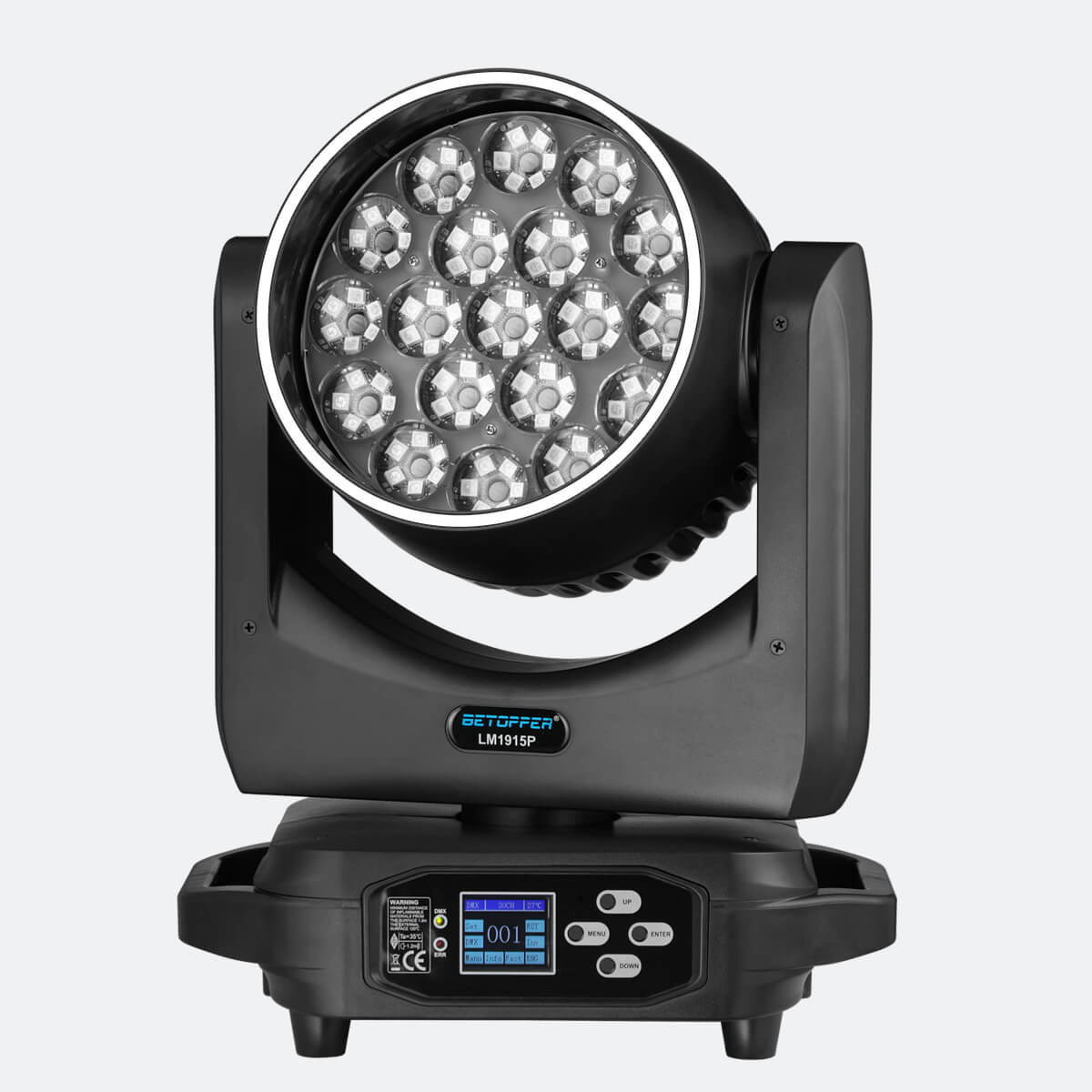

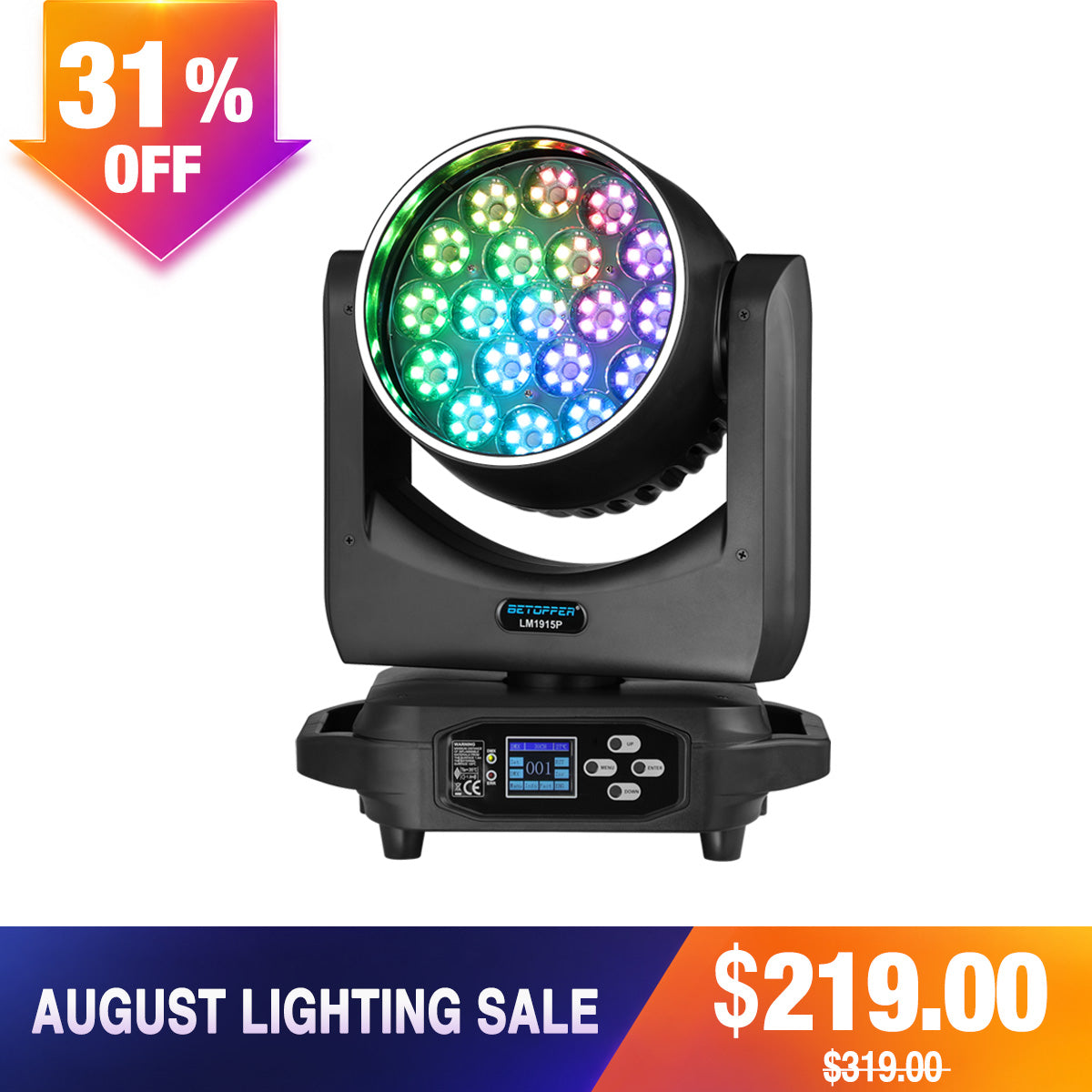

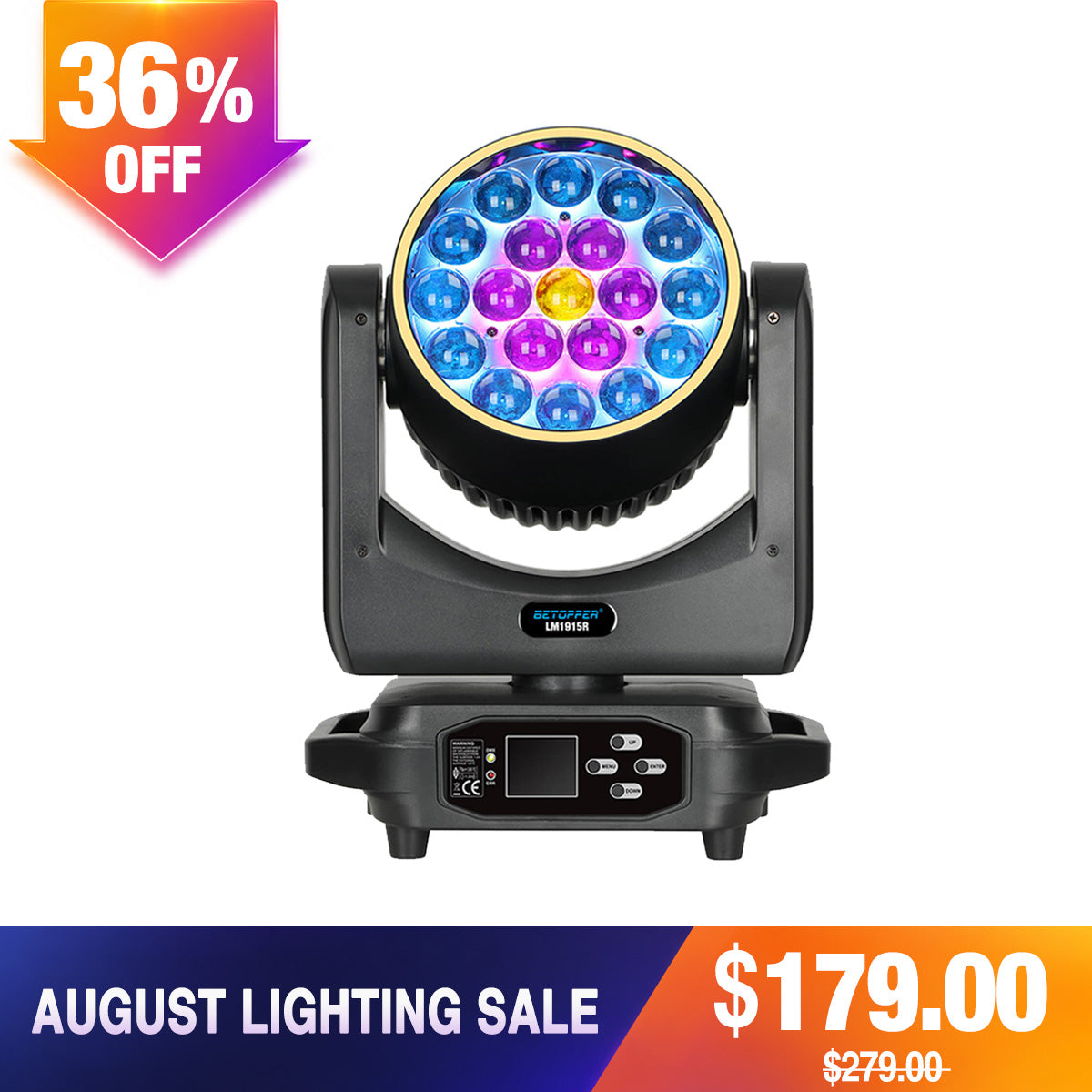

Betopper LM1915 Series 19×15W Wash Moving Head with Halo Ring
IMPORTANT: LM1915R and LM1915P are different versions. Please confirm the correct model before ordering. If you have any questions, feel free to contact us at service@betopperdj.com.
NOTE: Orders for the LM1915P version will begin shipping on June 8th and will be fulfilled based on the order date.
User Manual Download
@djdrizzy

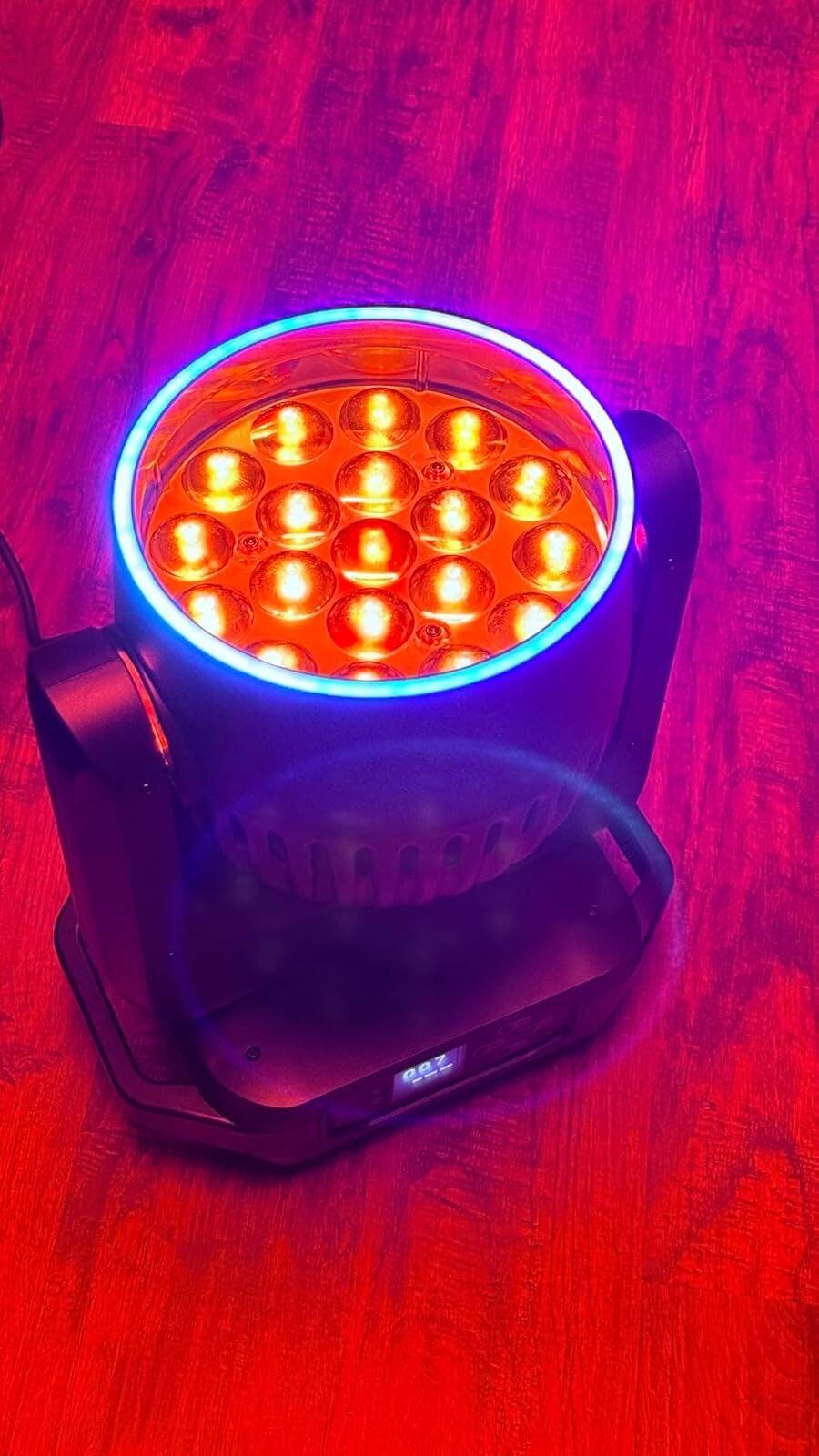

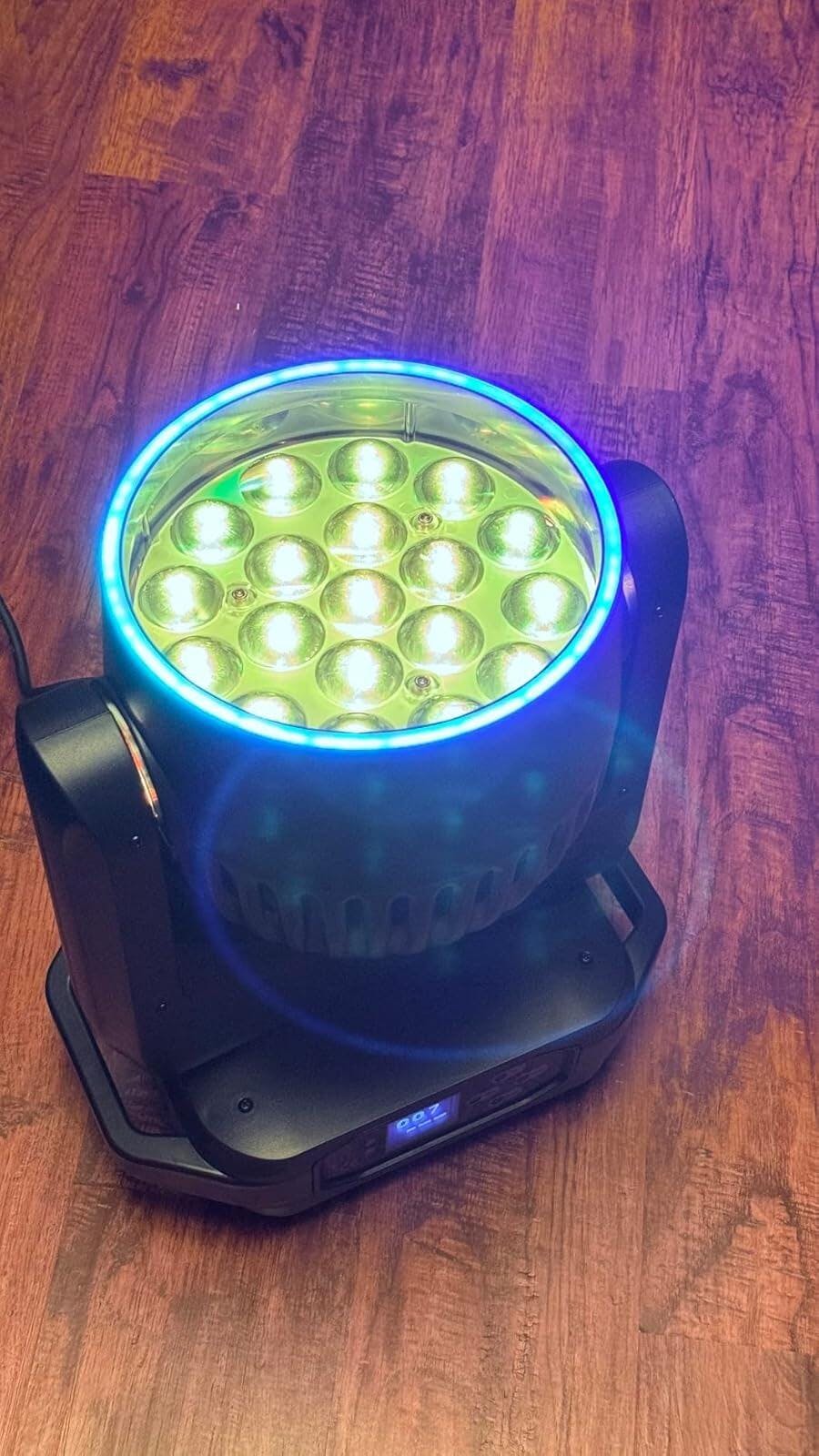

it's a beautiful great fixture here i'm very impressed so right here I I kind of haveit going in a circle effect and you can see just it is nice and bright and fun looking.....

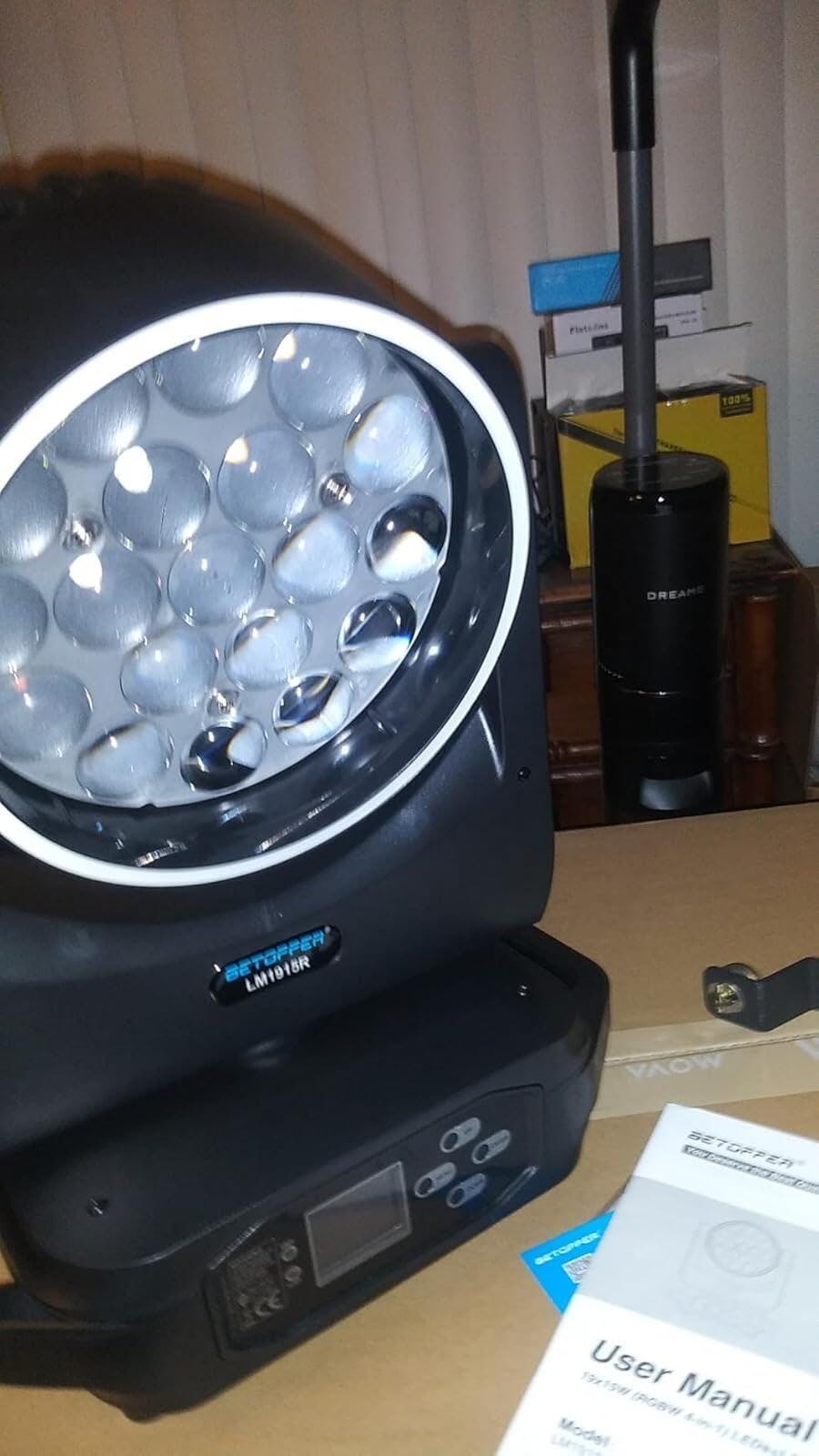

@FunHomeOwner
This unit is 20% brighter than the one it replaces, featuring improved lighting technology with 3000 lumens, which is exceptionally bright. It offers versatile RGBW, meaning it can produce 16 million colors, providing incredible lighting options...
@DJDarylBennett
These are extreme value because these are very bright it boasts three different light sources and it has a unique shape that's extremely Compact and lightweight and you can pick.
Reimagined Creative Wash Engine
Evolving from the classic 19 × 15W LED matrix design with signature LED halo strips, the LM1915P now introduces 114 RGB 5050 3-in-1 LEDs for enhanced visual depth and more immersive eye-candy effects.
Delivering up to 3,500 lumens of powerful wash output, combined with dynamic LED matrix visuals and smooth motorized zoom, it transforms a familiar fixture into a more creative and expressive lighting centerpiece for stages, clubs, and live productions.
High-Impact Dynamic Effects
Powered by a high-performance RGBW LED system, the LM1915P comes loaded with rich built-in dynamic effects, delivering intense brightness, fast response, and immersive visual energy.
From aggressive strobe chases to flowing color movements and layered eye-candy visuals, it creates stunning lighting performances with vibrant motion and powerful atmosphere. Even non-professional users can easily achieve immersive, high-energy visual effects straight out of the fixture.

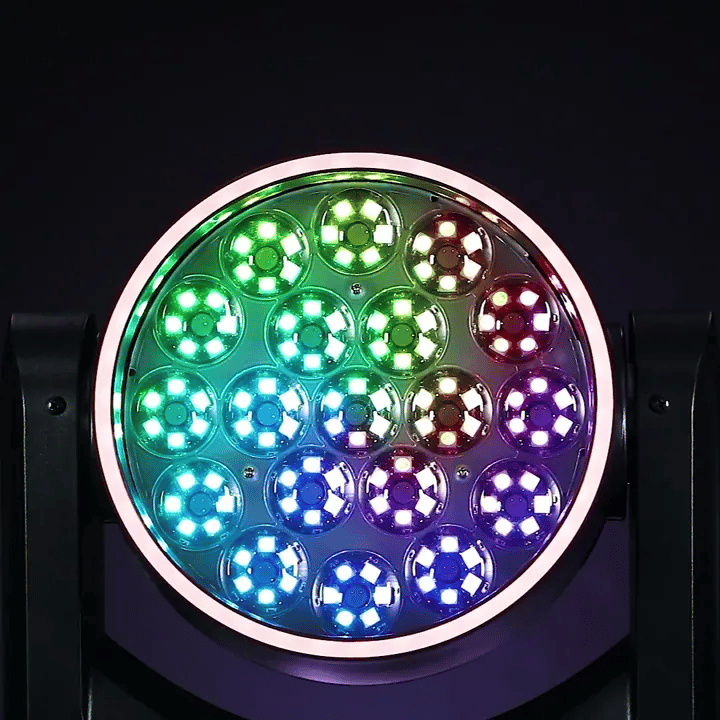

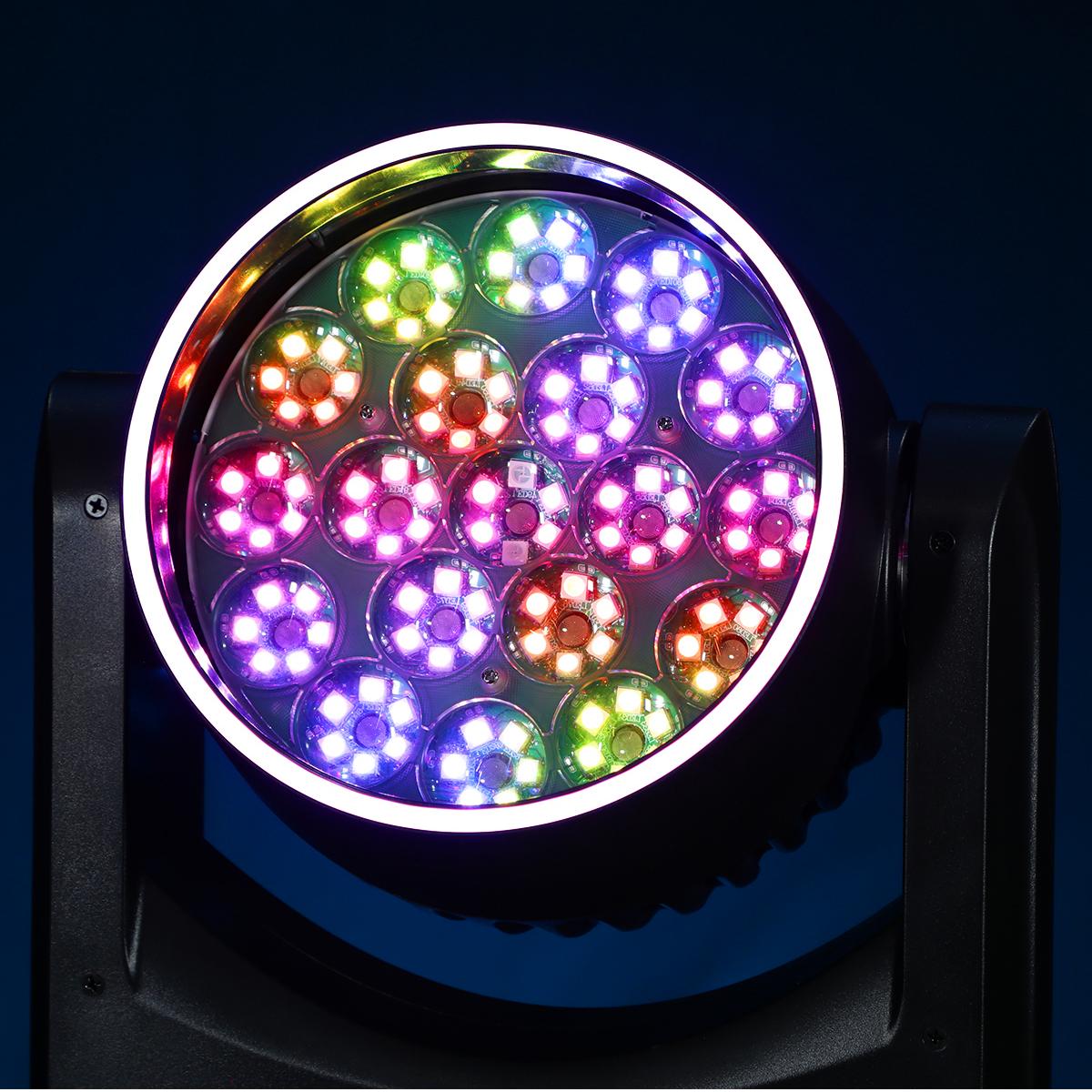

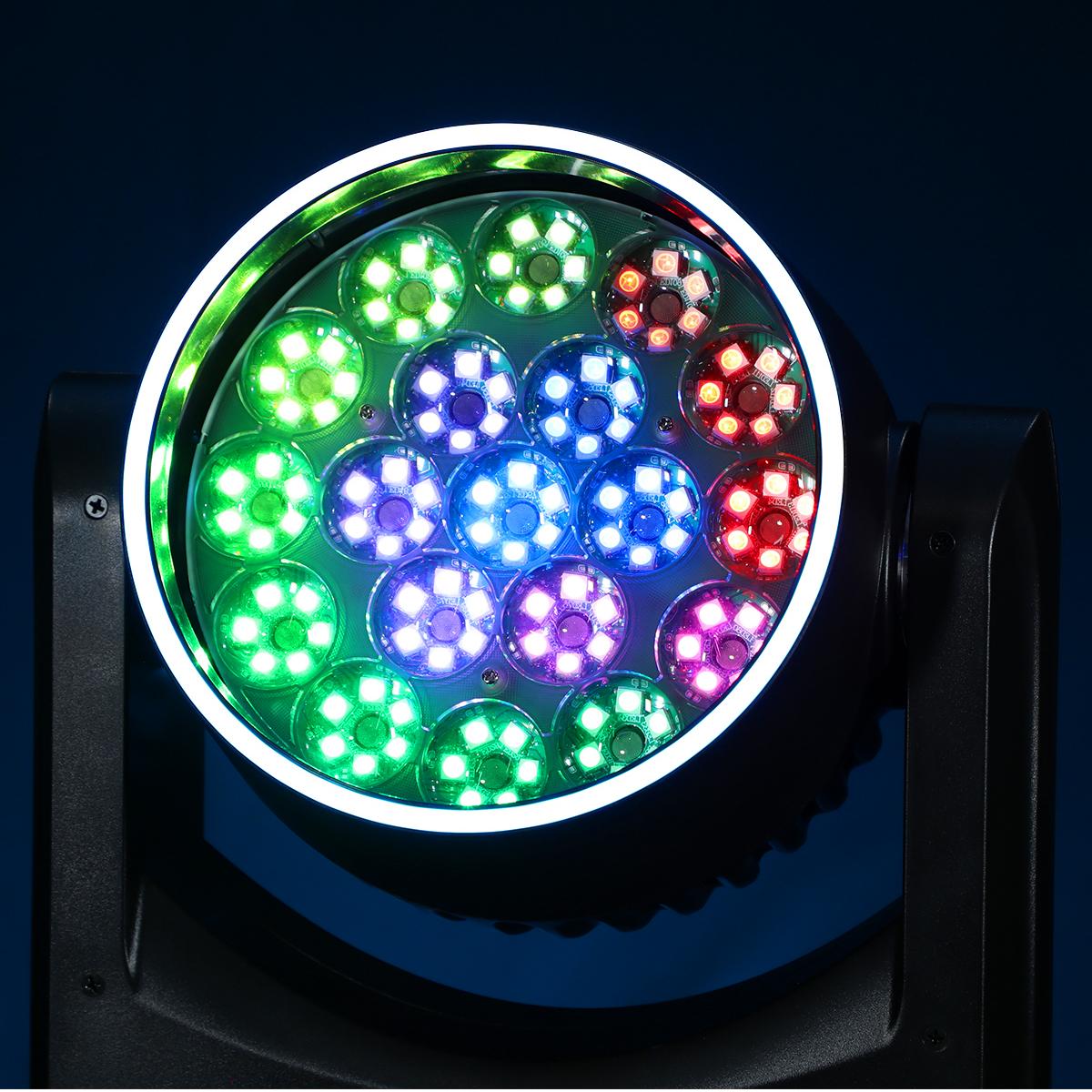

Creative LED Matrix Design
Featuring a multi-layer LED matrix structure with independently controllable zones, the LM1915P unlocks more customizable animations, dynamic chases, and immersive visual compositions.
The advanced matrix layout transforms the fixture from a traditional wash light into a creative visual centerpiece with limitless programming possibilities.

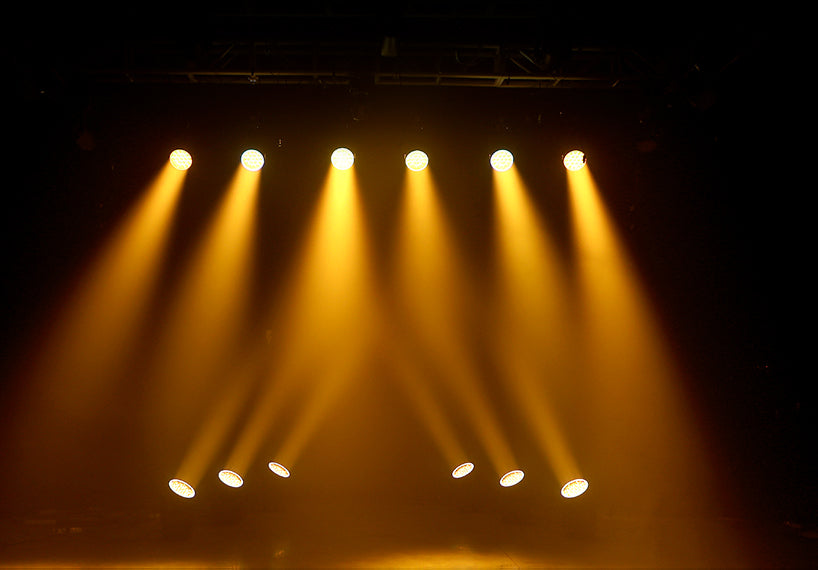

The Ultimate Hybrid Zoom Fixture
Combining beam shaping, wash coverage, dynamic eye-candy effects, immersive background visuals, and motorized zoom within a single fixture, the LM1915P delivers outstanding versatility in a compact form factor.
Its smooth 15°–40° zoom range enables seamless transitions from sharp, concentrated beam looks to wide and atmospheric wash effects, bringing greater depth, motion, and visual transformation to every lighting scene. By merging multiple lighting functions into one fixture, it streamlines setups while expanding creative freedom.
Features

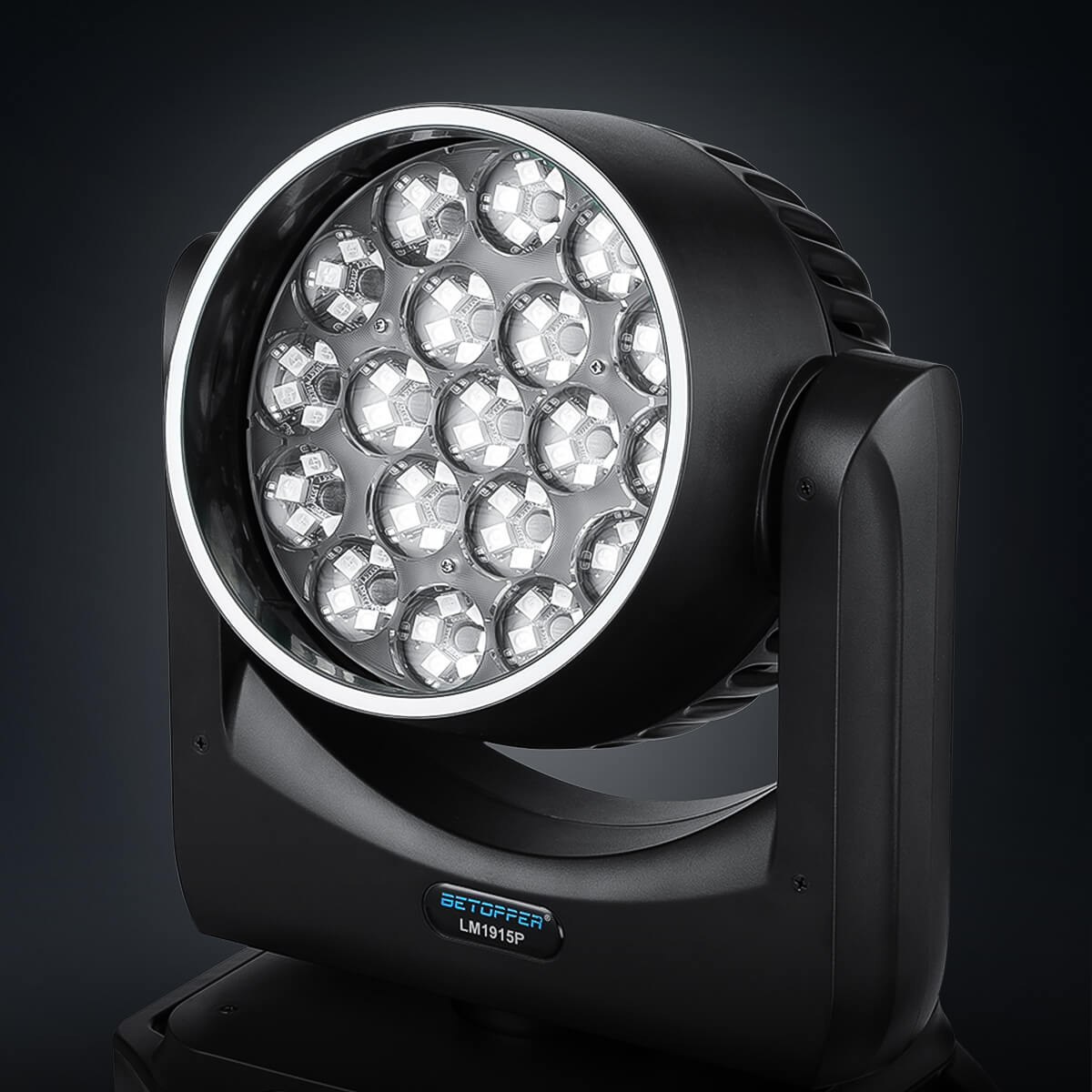

Lightweight Integrated Chassis
The LM1915P features a lightweight, one-piece housing design that significantly reduces overall fixture weight while maintaining structural strength and reliability. This optimized chassis improves handling efficiency, simplifies rigging, and enhances practicality for frequent setup and teardown scenarios, making the fixture more agile without compromising durability.
Multi-Layer LED Engine
The LM1915P combines a 37 × 15W high-output LED matrix with 222 RGB 5050 3-in-1 LEDs and an integrated LED strip, forming a multi-layer light source architecture. This hardware layout delivers higher light density, clearer effect separation, and enhanced visual depth for complex stage output.
Refined Optical Zoom Assembly
The LM1915P features a precision motorized zoom system with a 15°–40° range, enabling smooth and accurate beam scaling from narrow to wide angles. The optical assembly maintains stable light output and uniform beam quality across the entire zoom range, ensuring consistent projection performance and clean beam definition at every position.

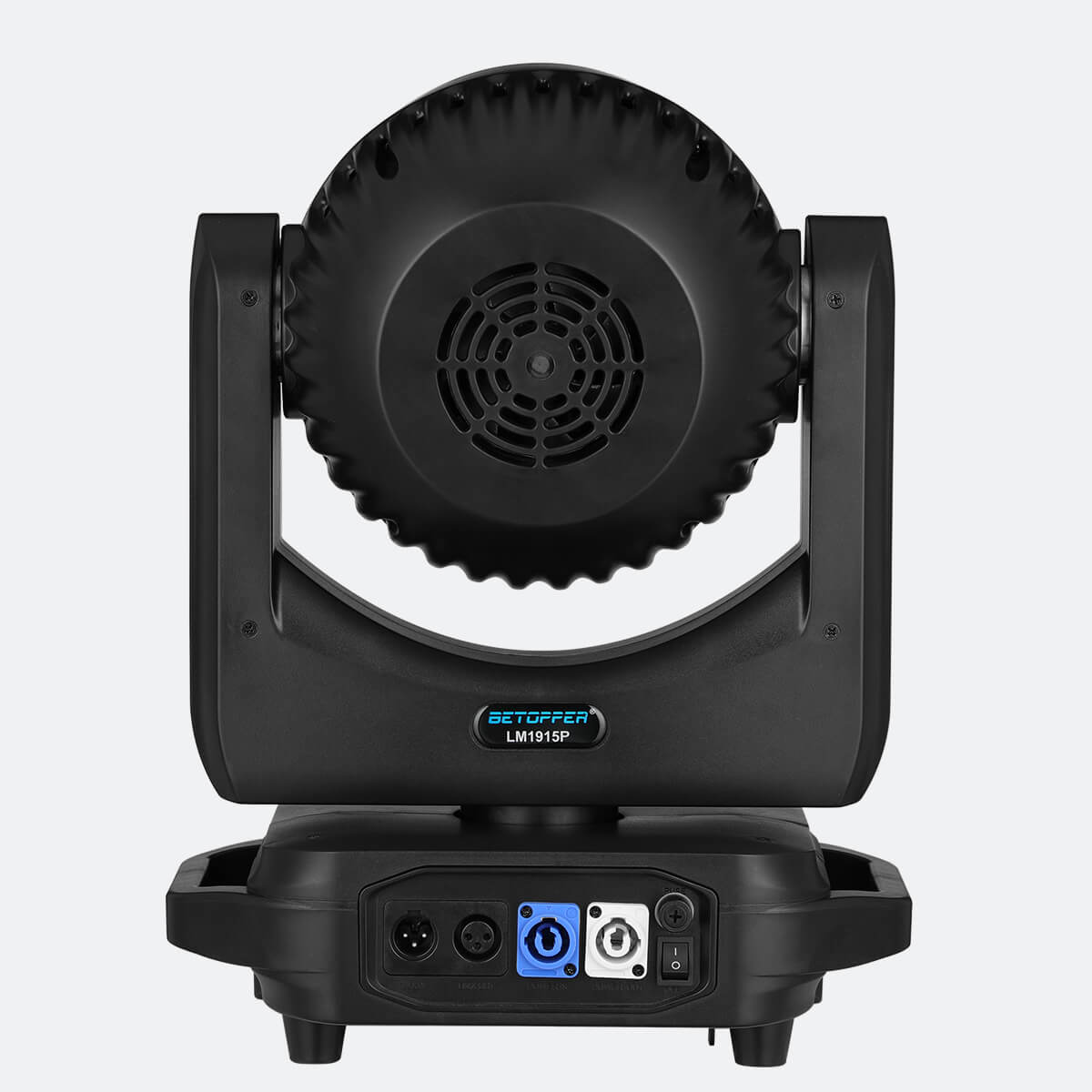

Advanced Cooling System
An optimized airflow and heat dissipation architecture ensures stable performance and efficient thermal management under continuous operation.
A low-noise fan system supports quiet running, while the sculpted fin-like housing design increases surface area for improved heat dispersion and guides internal airflow more effectively. Together, these elements maintain consistent output and help extend LED lifespan even in demanding conditions.

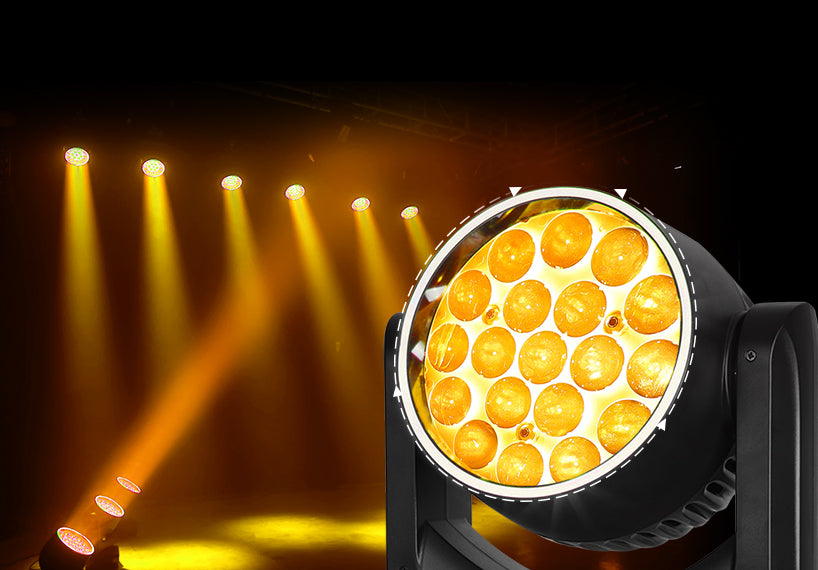

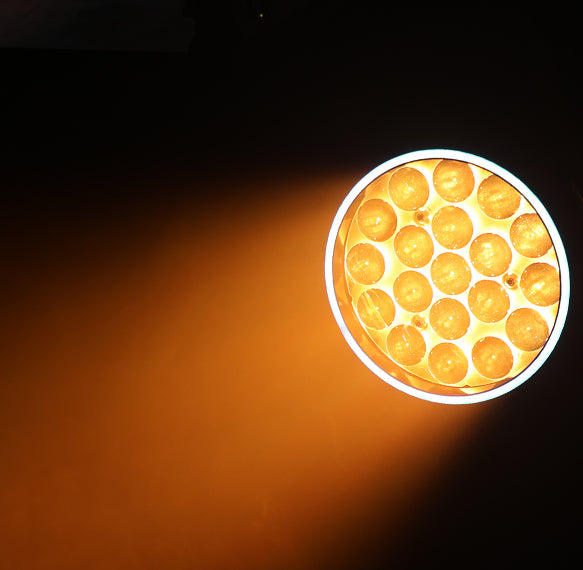

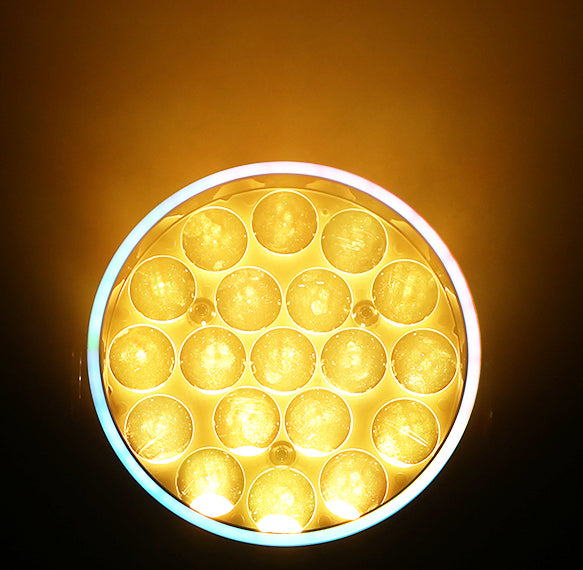

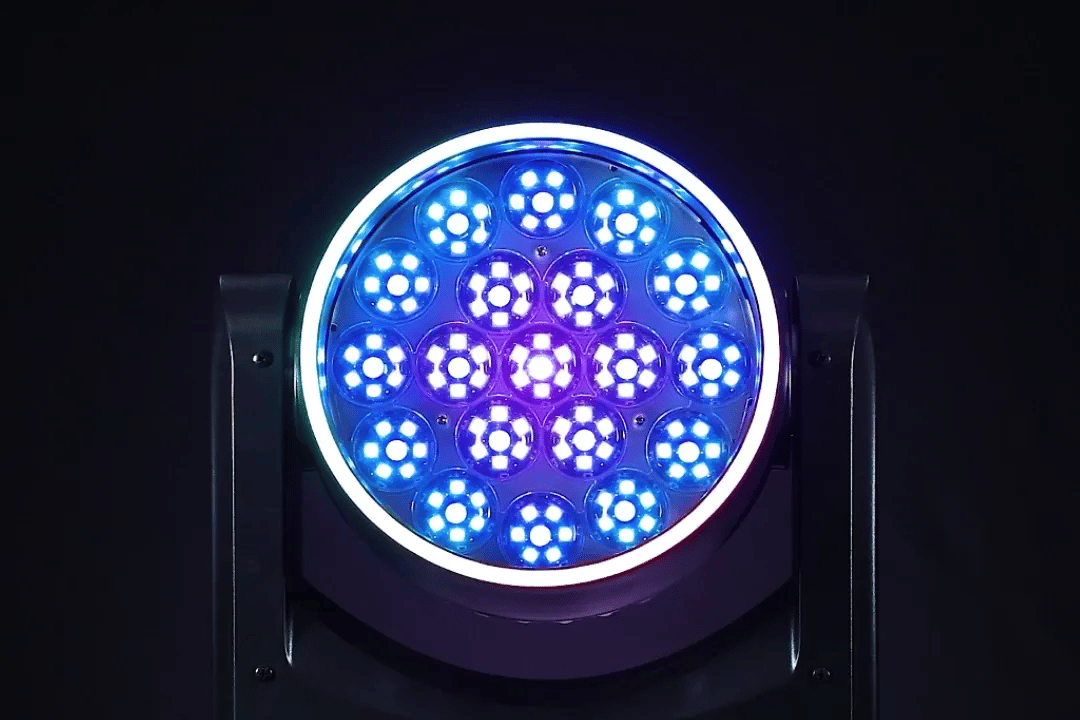

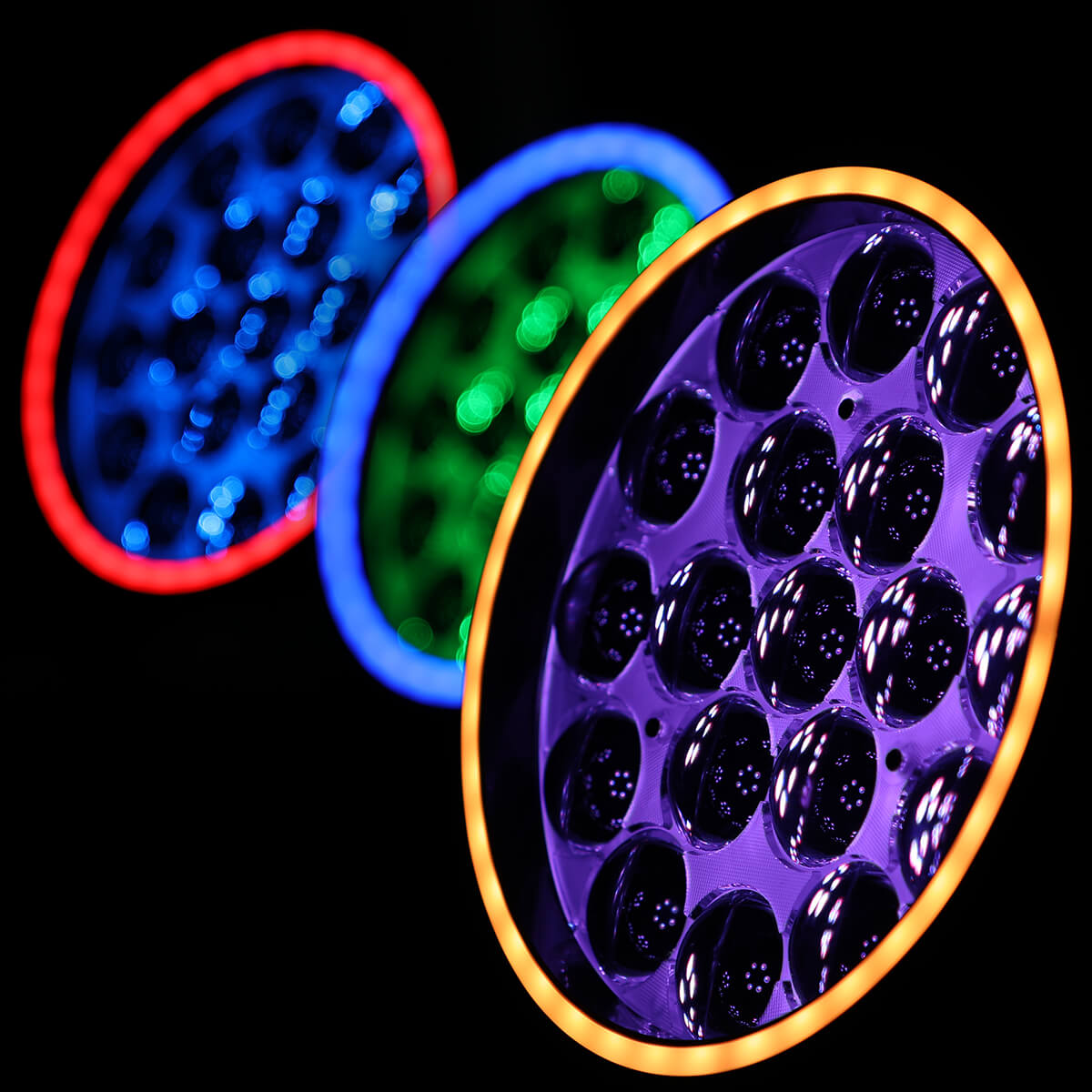

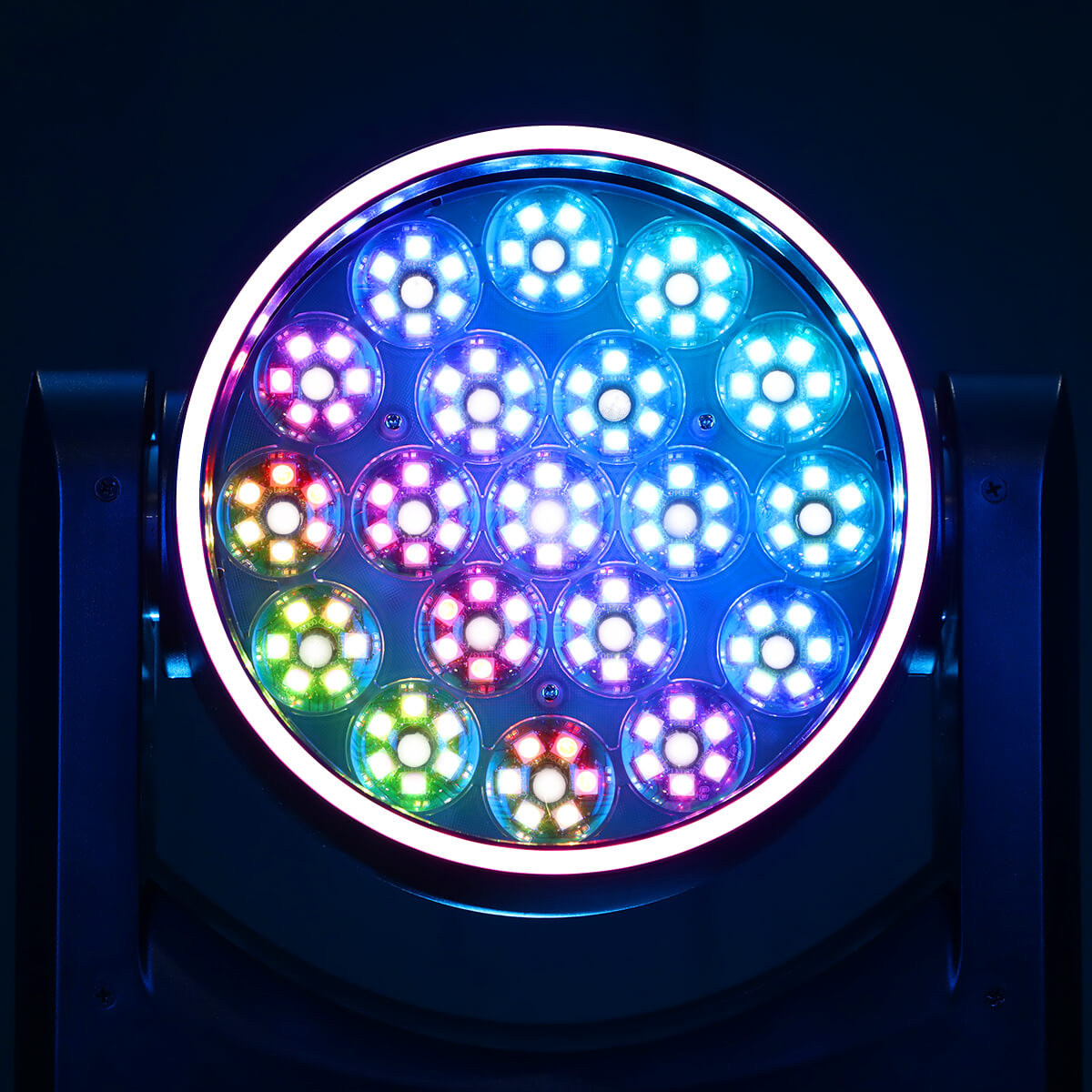

Signature LED Halo Ring
A distinctive LED halo ring encircles the fixture, delivering smooth, continuous illumination that enhances visual identity and stage presence. Designed to work in harmony with the main light engine, it adds an additional layer of ambient glow and dynamic accent effects, reinforcing overall visual depth without overwhelming the primary output.
Lightweight Integrated Chassis
The LM1915P features a lightweight, one-piece housing design that significantly reduces overall fixture weight while maintaining structural strength and reliability. This optimized chassis improves handling efficiency, simplifies rigging, and enhances practicality for frequent setup and teardown scenarios, making the fixture more agile without compromising durability.
Multi-Layer LED Engine
The LM1915P combines a 37 × 15W high-output LED matrix with 222 RGB 5050 3-in-1 LEDs and an integrated LED strip, forming a multi-layer light source architecture. This hardware layout delivers higher light density, clearer effect separation, and enhanced visual depth for complex stage output.
Refined Optical Zoom Assembly
The LM1915P features a precision motorized zoom system with a 15°–40° range, enabling smooth and accurate beam scaling from narrow to wide angles. The optical assembly maintains stable light output and uniform beam quality across the entire zoom range, ensuring consistent projection performance and clean beam definition at every position.
Advanced Cooling System
An optimized airflow and heat dissipation architecture ensures stable performance and efficient thermal management under continuous operation.
A low-noise fan system supports quiet running, while the sculpted fin-like housing design increases surface area for improved heat dispersion and guides internal airflow more effectively. Together, these elements maintain consistent output and help extend LED lifespan even in demanding conditions.
Signature LED Halo Ring
A distinctive LED halo ring encircles the fixture, delivering smooth, continuous illumination that enhances visual identity and stage presence. Designed to work in harmony with the main light engine, it adds an additional layer of ambient glow and dynamic accent effects, reinforcing overall visual depth without overwhelming the primary output.
Specification
Source
- Light Source:
LM1915P: 19×15W RGBW LEDs + 114×0.2W RGB LEDs + 38×0.2W RGB LED Strip
LM1915R: 19×15W RGBW LEDs + 66×0.2W RGB LED Strip - Rated Power:
LM1915P: 300W
LM1915R: 250W
Electrical and connections
- Input Voltage:
AC 100–240V, 50/60Hz - DMX Connections:

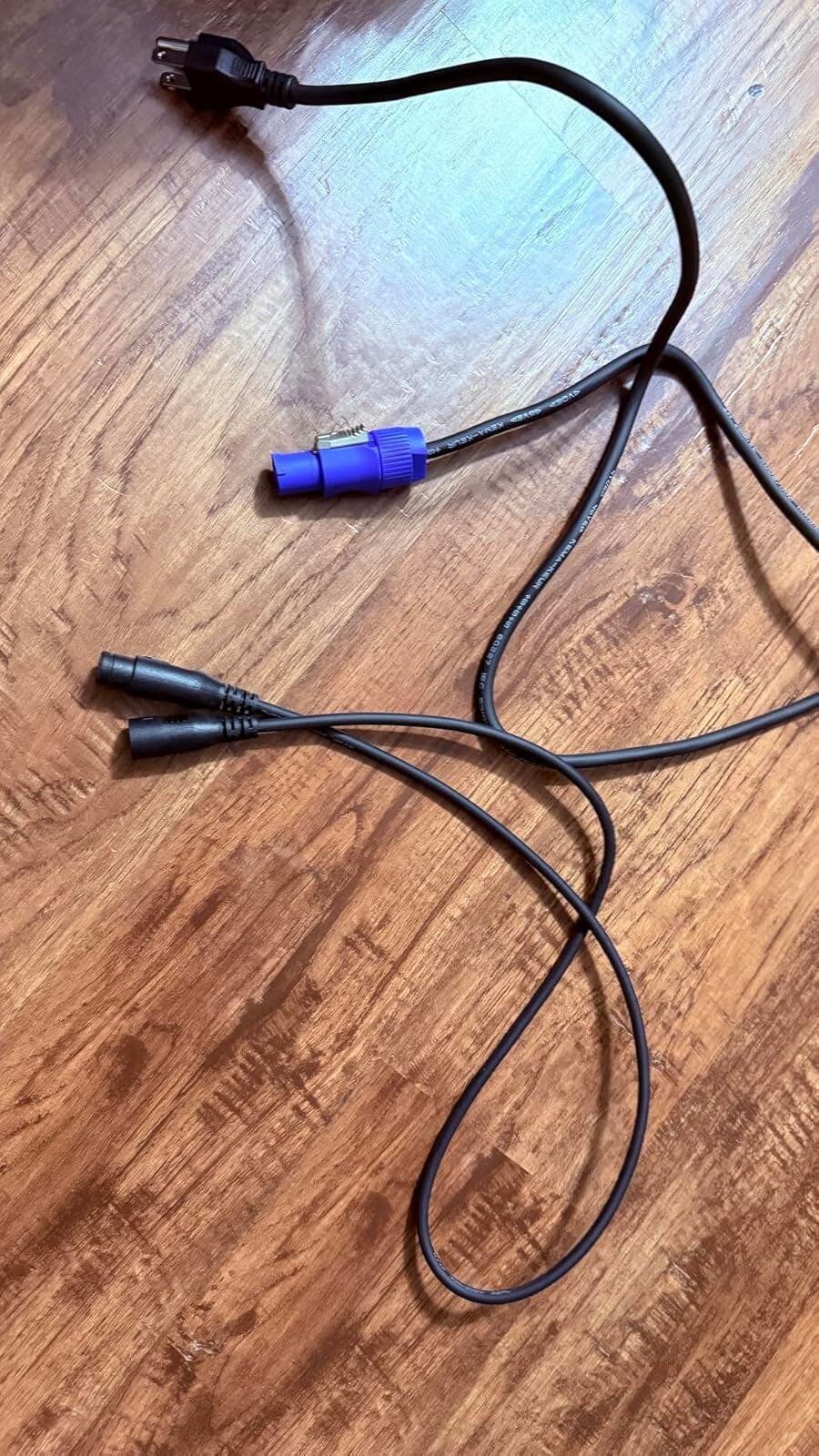

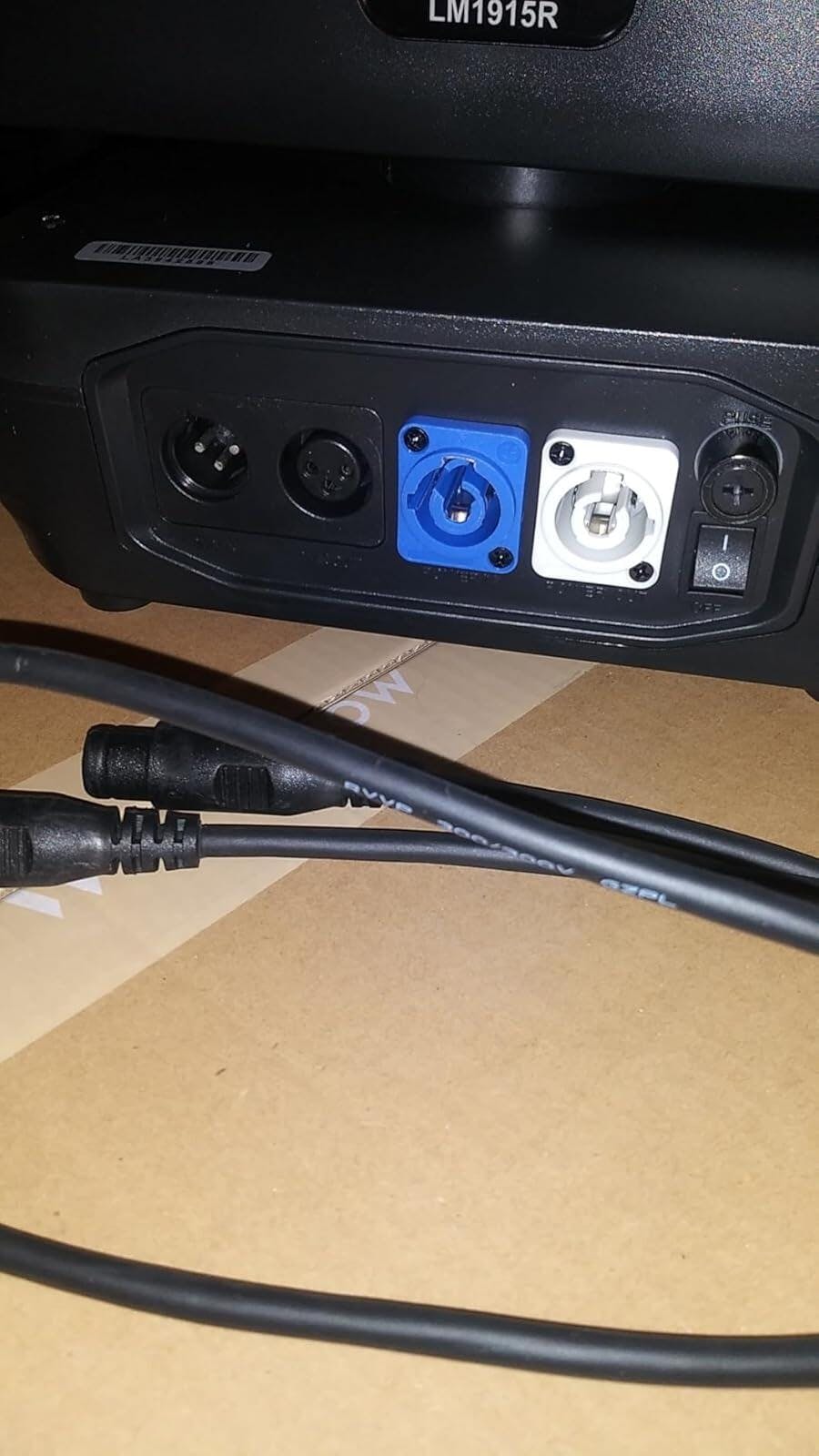

3-Pin DMX Input / Output - Power Connections:
Power Input / Output
Control and programming
- Control Modes:
DMX512, Auto, Sound Active, Master/Slave, RDM - DMX Channels:
LM1915P: 30 / 38 / 99CH
LM1915R: 15 / 24 / 32CH - Dimming:
32-bit 0–100% Linear Dimming - Strobe:
1–30Hz
Movement
- Zoom Range:
LM1915P: 15°–40°
LM1915R: 8°–60° - Pan / Tilt:
540° / 270°
Dimensions and Weight
- Product Dimensions:
325 × 210 × 430 mm - Net Weight:
LM1915P: 6.5 kg / 14.3 lbs
LM1915R: 6.4 kg / 14.1 lbs
Protection and Operating Conditions
- Protection Rating:
IP20, Indoor Use Only - Cooling System:
Heat Sink + Fan Cooling System - Operating Temperature:
-30°C to 50°C
File Download
LM1915P User Manual
LM1915P_D4
LM1915P_R20
LM1915P_XML
LM1915R User Manual
LM1915R_SSL2
LM1915R_R20
LM1915R_XML
