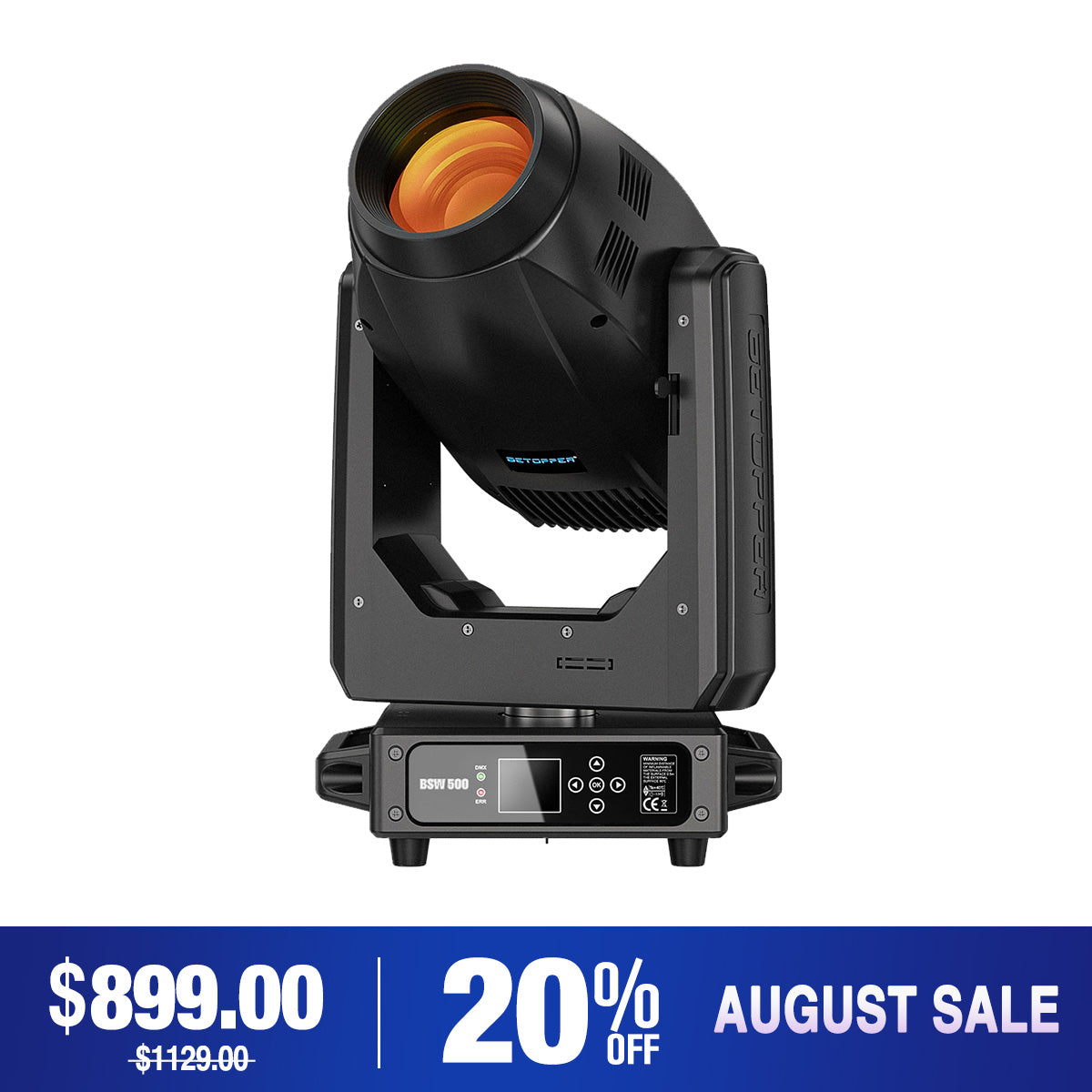

Betopper BSW500 500w Spot Beam Wash Hybrid Moving Head Light
Take a closer look
Ultra-Compact Professional Hybrid Design
Weighing just 16.5 kg / 36.4 lbs, the BSW500 delivers a flagship hybrid feature set in a compact professional moving head.
With CMY color mixing, CTO control, fixed and rotating gobos, animation effects, dual prism systems, frost, motorized zoom, and motorized focus, it provides the optical power and creative flexibility required for high-end stage, touring, club, theater, and event applications.
Flagship Hybrid Versatility — Beam · Wash · Spot in One
The BSW500 is powered by a 400W LED light source and an advanced optical system, delivering best-in-class beam performance among high-end hybrid moving heads.
Its tight 2.5° beam produces sharp, powerful aerial effects, while the 2.5°-19° motorized zoom allows flexible switching between Beam, Spot, and Wash looks. When used with gobos, the optical system can achieve approximately 4-5x image enlargement, creating larger, clearer, and more impactful stage projections.
Advanced Quad Color System — More Colors, More Control
The BSW500 features a professional quad color system, combining three CMY color mixing wheels with one CTO color temperature correction wheel. Each wheel includes 2 fixed color positions, giving the fixture a total of 12 fixed colors plus white for fast color access and precise color control.
Its linear CMY mixing system delivers smooth, accurate color transitions, while the 3500K-7000K CTO adjustment provides precise white balance control and flexible warm-to-cool tone adjustment for professional stage lighting applications.
Powerful LED Module — Reliable & Efficient
Equipped with a high-output LED module and advanced thermal management system, it delivers consistent brightness and accurate colors across all modes. With stable drive circuitry preventing flicker, it ensures long-term reliability and professional-grade performance.
Features
Flexible CTO Adjustment for Perfect White Balance
The BSW500 is equipped with a CTO color temperature adjustment system, offering a range from 3500K to 7000K. It enables quick switching between cool and warm tones, improving visual comfort, spatial depth, and skin tone reproduction. Compared with traditional fixed CTO filters, it allows dynamic color temperature adjustment without hardware replacement.
Infinite Color Control with Precision CMY Mixing
The BSW500 features an advanced CMY linear color mixing system, enabling virtually unlimited color combinations through precise Cyan, Magenta, and Yellow blending. Each color flag can be adjusted independently for smooth transitions from soft pastel tones to highly saturated colors. Compared with traditional fixed color filters, it delivers real-time color mixing with greater flexibility and faster response.
Dynamic Motorized Zoom for Sharper, Bigger Visuals
The fixture features a motorized zoom system with a beam angle range of 2.5° to 19°. Combined with fixed gobo patterns, it can achieve approximately 4–5× image enlargement for sharper projection details and a more focused visual effect. In prism mode, the zoom works more with beam splitting and spatial diffusion to create layered, atmospheric lighting.
Advanced Copper Cooling for Stable Performance
The BSW500 adopts a high-efficiency copper heat pipe cooling structure with superior thermal conductivity and stable heat dissipation performance. Compared with traditional cooling solutions, it provides more consistent temperature control under continuous operation, helping maintain stable performance and extend fixture lifespan.
Dual Prism Power for Multi-Layer Beam Effects
The fixture integrates 4-facet and 8-facet prism systems for dynamic beam splitting and layered aerial beam effects. The 4-facet prism is a linear in-line structure, while the 8-facet prism is a single-layer circular (ring) structure. Switching between the two or combining them with beam effects delivers enhanced spatial layering and a more immersive stage atmosphere.
Dynamic Water Ripple & Flame Effect
The BSW500 features a dedicated animation effect system that creates vivid water ripple and flame-style projections.
The water ripple effect adds flowing, wave-like movement to the stage, ideal for atmosphere building, immersive scenes, and textured background projection. The flame effect creates a dynamic burning visual, adding stronger energy and dramatic impact for concerts, clubs, themed events, and live shows.
Flexible CTO Adjustment for Perfect White Balance
The BSW500 is equipped with a CTO color temperature adjustment system, offering a range from 3500K to 7000K. It enables quick switching between cool and warm tones, improving visual comfort, spatial depth, and skin tone reproduction. Compared with traditional fixed CTO filters, it allows dynamic color temperature adjustment without hardware replacement.
Infinite Color Control with Precision CMY Mixing
The BSW500 features an advanced CMY linear color mixing system, enabling virtually unlimited color combinations through precise Cyan, Magenta, and Yellow blending. Each color flag can be adjusted independently for smooth transitions from soft pastel tones to highly saturated colors. Compared with traditional fixed color filters, it delivers real-time color mixing with greater flexibility and faster response.
Dynamic Motorized Zoom for Sharper, Bigger Visuals
The fixture features a motorized zoom system with a beam angle range of 2.5° to 19°. Combined with fixed gobo patterns, it can achieve approximately 4–5× image enlargement for sharper projection details and a more focused visual effect. In prism mode, the zoom works more with beam splitting and spatial diffusion to create layered, atmospheric lighting.
Advanced Copper Cooling for Stable Performance
The BSW500 adopts a high-efficiency copper heat pipe cooling structure with superior thermal conductivity and stable heat dissipation performance. Compared with traditional cooling solutions, it provides more consistent temperature control under continuous operation, helping maintain stable performance and extend fixture lifespan.
Dual Prism Power for Multi-Layer Beam Effects
The fixture integrates 4-facet and 8-facet prism systems for dynamic beam splitting and layered aerial beam effects. The 4-facet prism is a linear in-line structure, while the 8-facet prism is a single-layer circular (ring) structure. Switching between the two or combining them with beam effects delivers enhanced spatial layering and a more immersive stage atmosphere.
Dynamic Water Ripple & Flame Effect
The BSW500 features a dedicated animation effect system that creates vivid water ripple and flame-style projections.
The water ripple effect adds flowing, wave-like movement to the stage, ideal for atmosphere building, immersive scenes, and textured background projection. The flame effect creates a dynamic burning visual, adding stronger energy and dramatic impact for concerts, clubs, themed events, and live shows.
Specification
Source
- Light Source:400W LED
- Color Temperature: 7000K ± 500K
Optical System
Beam Angle: 2.5°–19°
Fixed Gobo Wheel: 7 + White + Cyclic Effect
Rotating Gobo Wheel: 7 + White
Prism System: 4 Linear Prism + 8 Prism
Electrical and connections
Voltage: AC100V–240V 50/60Hz
Rated Power: 600W
Control and Programming
Control Mode: DMX512 / Auto / Sound / Master-Slave
DMX Channels: 27/29CH
Color: 12 + White
CMY: Unlimited color adjustment, smooth color transitions and precise color adjustment
CTO: Color Temperature Adjustment, Range: 3500K–7000K
Dimmer: 0–100% Linear Dimmer
Movement
Pan: 540°
Tilt: 270°
Effects and Features
Color Mixing: CMY + CTO
Gobo Effects: Fixed Gobo + Rotating Gobo
Prism Effects: 4 Linear Prism + 8 Prism
Dimensions and Weight
- Net Weight: 16.5 kg
Protection and Operating
- ConditionsProtection Level: Rated IP20, for indoor use only. Outdoor use requires weather considerations.
- Cooling System: Heat Sink+Fan ensures efficient cooling.
- Operating Temperature: Recommended range -30°℃ to 50°℃.
Included items
- User Manual*1
- Power Cord*1
- Signal Cable*1
- Brackets*1
Gobos&Colours Wheel
